| Basic Information | |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Form Factor |
ATX 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 4x M.2 slots |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Display Port (s) | 1x DisplayPort 1.4 |

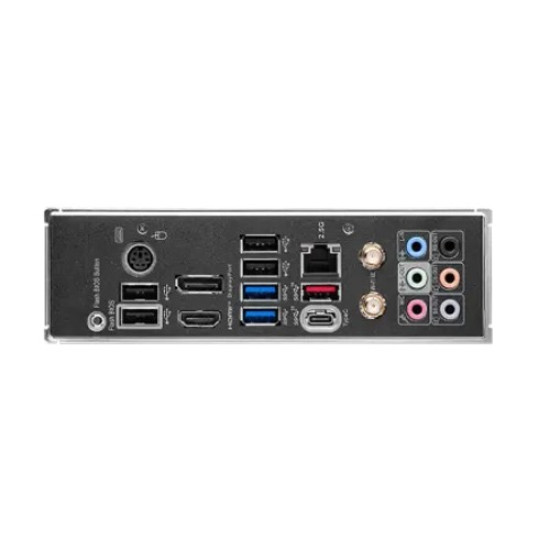

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3 |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | LED FEATURE: 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

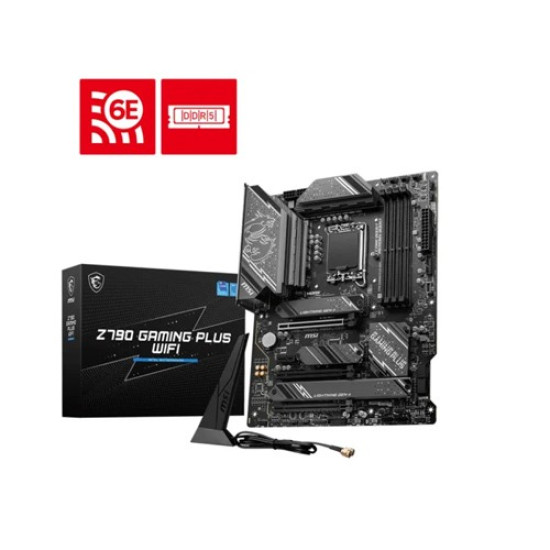

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard is a high-performance motherboard built for gamers and professionals who demand top-tier computing power and advanced features. Compatible with Intel Core 14th, 13th, and 12th Generation processors, as well as Intel Pentium Gold and Celeron processors, it utilizes the LGA 1700 socket and the advanced Intel Z790 chipset for unparalleled performance and compatibility. This motherboard supports DDR5 memory with 4 DIMM slots, allowing up to 192GB of memory and speeds reaching up to 7200+ MHz (OC). Its dual-controller, dual-channel mode ensures seamless multitasking and responsiveness, making it ideal for heavy workloads and gaming enthusiasts. With Intel XMP 3.0 OC support, users can enjoy optimized overclocking performance. The MSI Z790 GAMING PLUS WIFI comes equipped with four M.2 slots and six SATA 6G ports for comprehensive storage options. It also features advanced expansion capabilities, including three PCI-E x16 slots and one PCI-E x1 slot, supporting PCIe 5.0, 4.0, and 3.0 configurations for cutting-edge graphics cards and other components. Connectivity options are abundant, with Intel Wi-Fi 6E for high-speed wireless networking, Bluetooth 5.3, and Intel 2.5Gbps LAN for stable wired connections. The motherboard also includes multiple USB ports, including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 1 Type-A, for versatile device compatibility. Audio enthusiasts will appreciate the Realtek ALC897 Codec, which delivers 7.1-channel high-definition audio with S/PDIF output support. The HDMI 2.1 and DisplayPort 1.4 outputs ensure support for ultra-high-resolution displays up to 8K. Backed by MSI's 3-year warranty, the MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard is the ultimate choice for users seeking reliability, cutting-edge technology, and exceptional performance.
