| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Graphics | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | Support up to 64GB |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| VGA (s) | 1x VGA port |
| Warranty Information | |
| Warranty | 3 years |

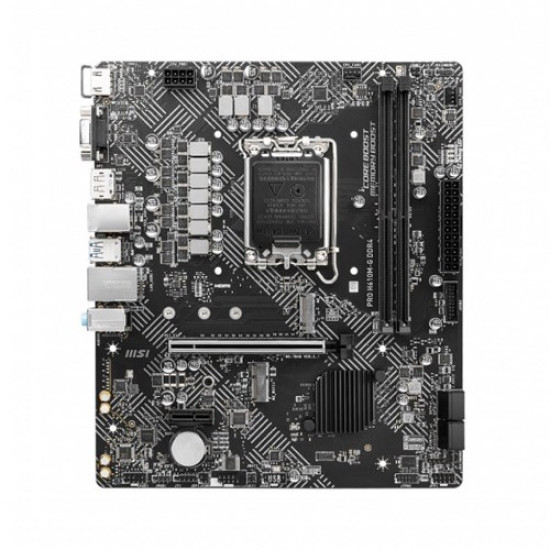

MSI PRO H610M-G DDR4 Micro-ATX Motherboard is a high-performance and versatile motherboard designed to support the latest Intel processors and deliver reliable performance for a variety of computing needs. With support for 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, this motherboard provides users with the flexibility to choose from a wide range of CPUs. The LGA 1700 socket ensures seamless compatibility with Intel’s latest offerings. This motherboard is built with the Intel H610 chipset, offering excellent stability and efficiency for everyday computing tasks. Its compact mATX form factor (9.29 x 7.95 inches) makes it an ideal choice for space-constrained builds while still providing ample expansion options. It comes with 2 DDR4 memory slots supporting up to 64GB of RAM at speeds of 2133 MHz to 3200 MHz, ensuring fast and responsive multitasking capabilities. For graphics, the MSI PRO H610M-G supports HDMI 2.1, DisplayPort 1.4, and VGA, allowing users to connect multiple displays and enjoy resolutions up to 4K at 60Hz. This makes it a great choice for users who need excellent visual performance for work or entertainment. The motherboard also features multiple expansion options, including a PCIe x16 slot for high-performance GPUs and an M.2 slot for faster storage. It includes USB 3.2 Gen 1 ports, USB 2.0 ports, and Intel I219V 1Gbps LAN for reliable connectivity. Additional features include 7.1-channel high-definition audio, RGB LED connectors, and TPM support. With a 3-year warranty, the MSI PRO H610M-G DDR4 Micro-ATX Motherboard is a reliable and feature-rich choice for building a powerful, cost-effective system.
