| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | Intel H610 Chipset |
| Form Factor |
mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Audio | Realtek ALC897 Codeca 7.1-Channel High-Definition Audio |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 |
| Graphics | |
| Graphics | supporting a maximum resolution of 4K 30Hz supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Memory Specifications | |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 64GB |
| Connector & Ports | |

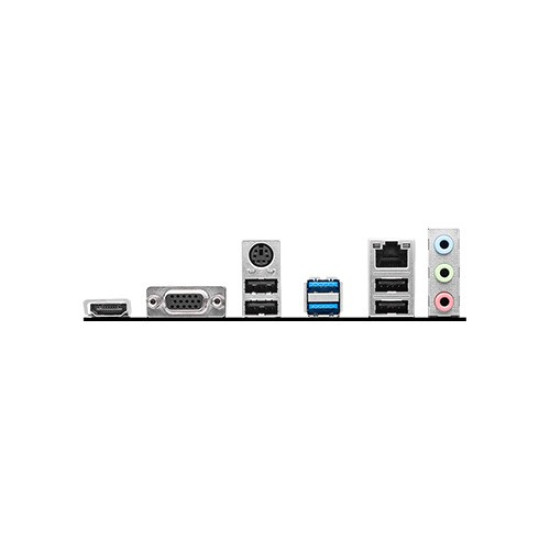

| HDMI | 1x HDMI 1.4 with HDR port |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports |
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller |
| Supported Storage | 1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices |
| Audio | 1x Front panel audio connector |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| VGA (s) | 1x VGA |
| Others Information | |
| Special Features |
1x 4-pin RGB LED connector 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

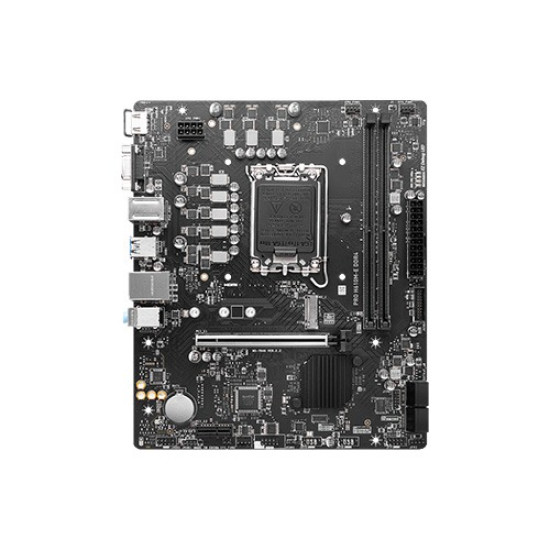

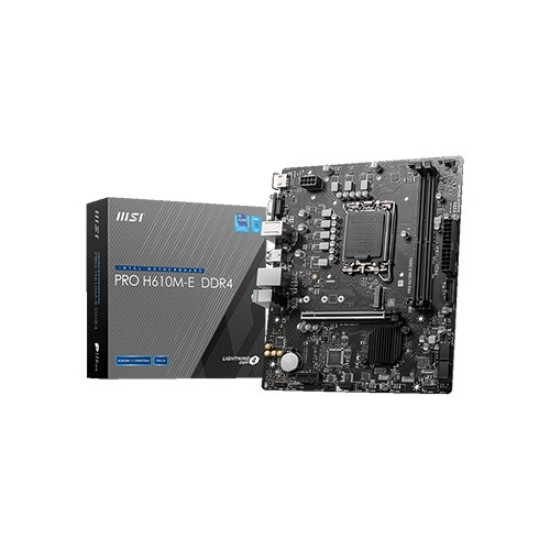

MSI PRO H610M-E DDR4 mATX Motherboard is an excellent choice for building a powerful and efficient PC. Designed for performance and reliability, this motherboard supports 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, all with an LGA 1700 socket. It features the Intel H610 chipset, ensuring smooth and efficient operation for both work and play. This motherboard comes in a compact mATX form factor, measuring 9.3 x 7.9 inches (23.6 cm x 20 cm), making it ideal for smaller builds without compromising on performance. It supports up to 64GB of DDR4 memory across two slots, with speeds ranging from 2133 MHz to 3200 MHz. Dual-channel support enhances overall memory performance, while non-ECC and un-buffered memory types provide stability for everyday tasks. For graphics, the MSI PRO H610M-E supports a maximum resolution of 4K at 30Hz, depending on the processor's integrated graphics. It includes an HDMI 1.4 port, a VGA connector, and PCIe slots to allow for future upgrades. It also offers 7.1-channel high-definition audio powered by the Realtek ALC897 codec for immersive sound. Connectivity options include USB 3.2 Gen 1 and USB 2.0 ports, as well as a Realtek RTL8111H 1Gbps LAN port for fast and reliable network connections. Storage is supported through a PCIe 3.0 x4 M.2 slot, compatible with 2242, 2260, and 2280 storage devices. Other features include an RGB LED connector, EZ Debug LEDs for troubleshooting, and TPM support for enhanced security. Backed by a 3-year warranty, the MSI PRO H610M-E DDR4 mATX Motherboard delivers a solid foundation for your computing needs, combining performance, durability, and expandability.
