| Basic Information | |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Chipset | INTEL H470 |
| Form Factor | mATX 202mmx236mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Connector & Ports | |
| HDMI | 1x HDMI 1.4 |
| Display Port (s) | 1x VGA |

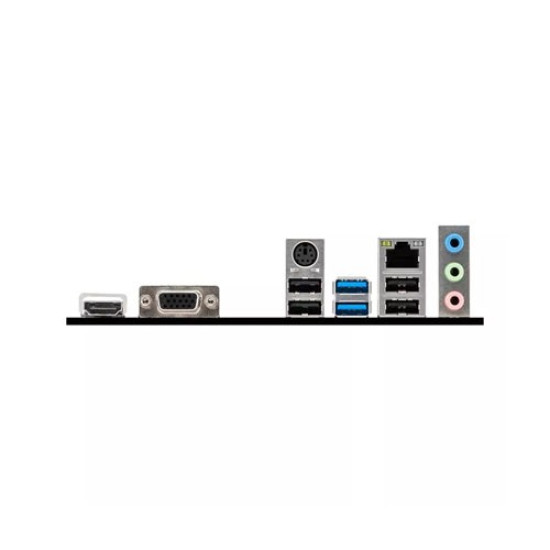

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek 8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

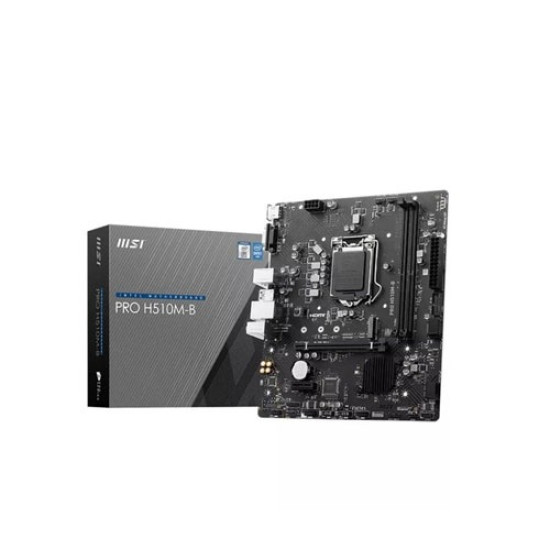

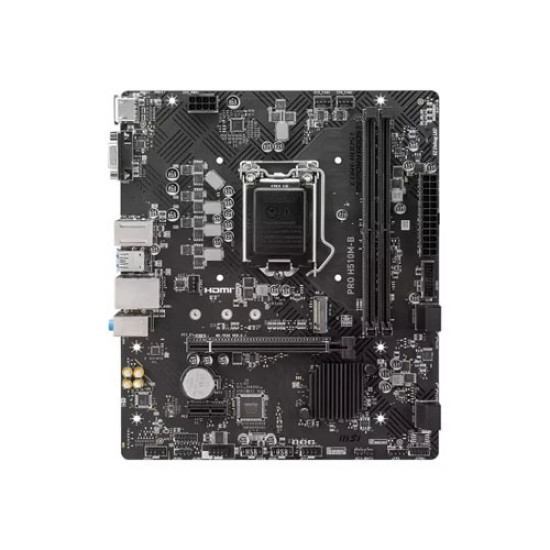

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard is a versatile and high-performance solution designed for 10th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1200 socket. This motherboard features the Intel H470 chipset, ensuring stable and efficient operation for a variety of computing needs. With its compact Micro-ATX form factor (202mm x 236mm), it is ideal for both home and office PC builds. Memory support is robust, with two DDR4 slots accommodating up to 64GB of RAM. It supports memory speeds of up to 2933MHz for Intel Core i9/i7 processors and up to 2666MHz for Core i5/i3, Pentium Gold, and Celeron CPUs. Additionally, its dual-channel architecture and Intel Extreme Memory Profile (XMP) enhance performance and compatibility. In terms of graphics, the motherboard offers an HDMI 1.4 port capable of 4K resolution at 30Hz and a VGA port supporting resolutions up to 1920x1200 at 60Hz. For expansion, it includes one PCI-E x16 slot for GPUs and one PCI-E x1 slot for additional cards, both supporting PCIe 3.0. The connectivity options include a Realtek 8111H Gigabit LAN port, multiple USB ports (4x USB 2.0 and 4x USB 3.2 Gen1 Type A), and storage options like 4x SATA 6G and 1x M.2 slot supporting PCIe 3.0 x4 or SATA drives. Special features include EZ Debug LEDs for troubleshooting and RGB LED headers for custom lighting setups. Realtek ALC897 codec delivers 7.1-channel high-definition audio for an immersive sound experience. Backed by a 3-year warranty, the MSI PRO H510M-B offers reliability and excellent value for anyone looking to build a cost-effective, powerful PC.
