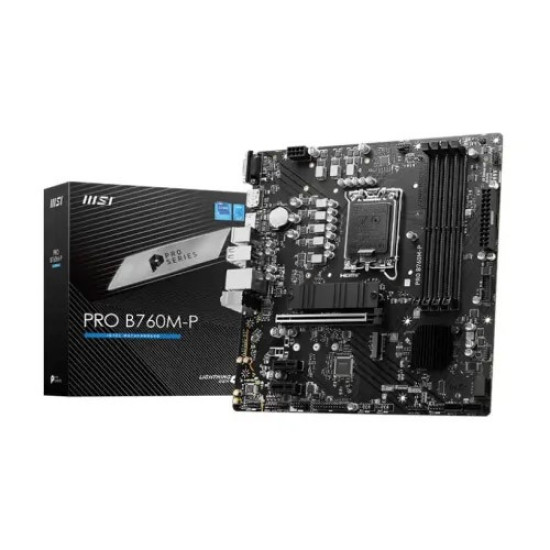

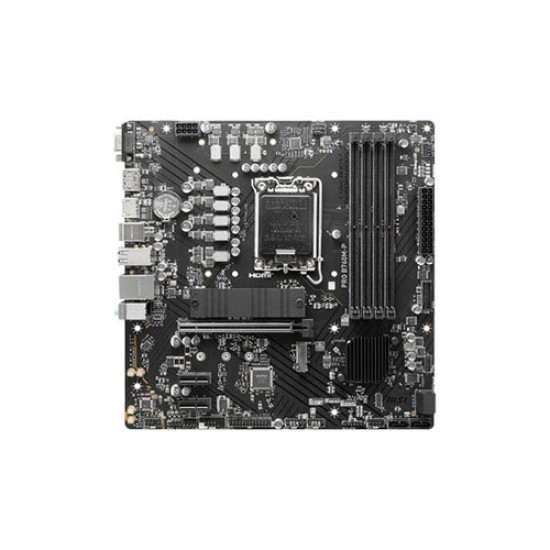

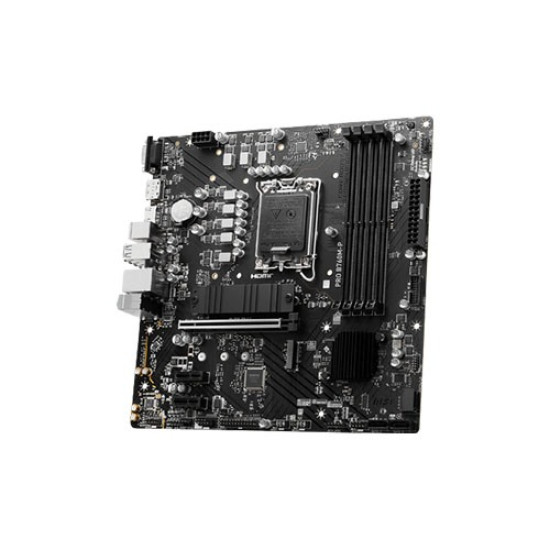

MSI PRO B760M-P DDR5 mATX Motherboard

New -13 %

MSI PRO B760M-P DDR5 mATX Motherboard

Key Feature

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB 6800+(OC)

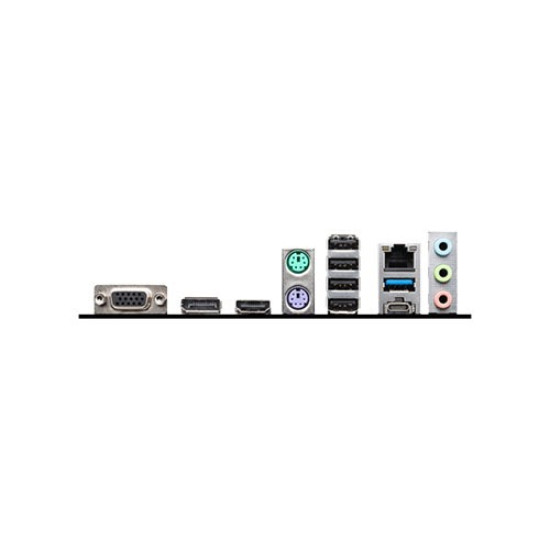

- Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
- Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

View more details

Status: In Stock
Brand: MSI
Model: PRO B760M-P

Based on 0 reviews. - Write a review

15,200৳

17,380৳

Ex Tax: 15,200৳

Qty

Add to Cart

Buy Now Call For Price

Add to Wish List Compare this Product

Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Audio Connectors
Expansion Slots
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics
Graphics	1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Memory Specifications
Type	DDR5
Slots	4
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
VGA (s)	1x VGA
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI PRO B760M-P DDR5 mATX Motherboard

MSI PRO B760M-P DDR5 mATX Motherboard is a powerful and reliable choice for building a high-performance PC. Designed for Intel's latest 14th, 13th, and 12th Gen Core processors, along with Pentium Gold and Celeron CPUs, it features the LGA 1700 socket and the Intel B760 chipset for optimal performance. This compact motherboard is built with an mATX form factor, measuring 243.84mm x 243.84mm, making it perfect for smaller PC builds without compromising on features. The MSI PRO B760M-P supports up to 192GB of DDR5 memory, providing exceptional bandwidth for demanding applications. It boasts impressive overclocking capabilities, with support for DDR5 memory speeds up to 6800+ MHz when overclocked, making it ideal for gamers and content creators who require superior memory performance. It also supports Intel XMP 3.0 for easy memory overclocking and dual-channel memory configurations for enhanced system efficiency. For connectivity, the motherboard is equipped with multiple expansion slots, including one PCIe 4.0 x16 slot for high-speed graphics cards, and two PCIe 4.0 x1 slots for additional peripherals. It provides a comprehensive range of storage options, including two M.2 slots (one from the CPU and one from the chipset), as well as four SATA 6G ports, supporting RAID 0, 1, 5, and 10 configurations for optimal storage performance. In terms of audio, the motherboard features a Realtek ALC897 codec with 7.1-channel high-definition audio, providing an immersive sound experience. The rear I/O includes HDMI, DisplayPort, and VGA outputs, making it versatile for various display setups. It also has multiple USB ports, including USB 3.2 Gen2 Type-C for fast data transfer. With a 3-year warranty and advanced features like EZ Debug LED and TPM 2.0 support, the MSI PRO B760M-P DDR5 motherboard is a top choice for users looking to build a high-performance system.

Features

Supports Latest Intel Processors: Compatible with Intel's 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron processors, using the LGA 1700 socket.
Intel B760 Chipset: Powered by the Intel B760 chipset for stable performance and enhanced efficiency in multitasking.
DDR5 Memory Support: Offers support for high-speed DDR5 memory with overclocking frequencies up to 6800+ MHz, ensuring superior performance for gaming and heavy applications.
4x DDR5 Memory Slots: Capable of supporting up to 192GB of DDR5 RAM in dual-channel configuration for improved system responsiveness and speed.
PCIe 4.0 Expansion Slots: Includes one PCIe 4.0 x16 slot for high-speed graphics cards and two PCIe 4.0 x1 slots for additional expansion cards.
Dual M.2 and SATA Storage: Provides two M.2 slots (one from the CPU and one from the chipset) and four SATA 6G ports, offering flexible storage options with support for RAID 0, 1, 5, and 10 configurations.
HDMI, DisplayPort, and VGA Outputs: Features HDMI 1.4, DisplayPort 1.4, and VGA outputs for versatile display connectivity with support for resolutions up to 4K.
Realtek ALC897 Audio Codec: Delivers 7.1-channel high-definition audio for immersive sound experiences.
Comprehensive USB Ports: Includes multiple USB ports, including USB 3.2 Gen2 Type-C, for fast data transfer and easy connectivity.
Gigabit LAN: Equipped with a Realtek RTL8111H Gigabit Ethernet port for fast and stable network connectivity.
EZ Debug LED: Comes with 4 EZ Debug LEDs to help with troubleshooting and diagnosing hardware issues easily.
TPM 2.0 Support: Features a TPM pin header for adding a Trusted Platform Module, enhancing system security.
Compact mATX Form Factor: The motherboard’s mATX size (243.84mm x 243.84mm) allows for compact builds without sacrificing performance.
3-Year Warranty: Backed by a 3-year warranty for reliability and peace of mind.
