| Basic Information | |
| Supported CPU |
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor |
mATX 220mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 96GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Display Port (s) | 1x DisplayPort |

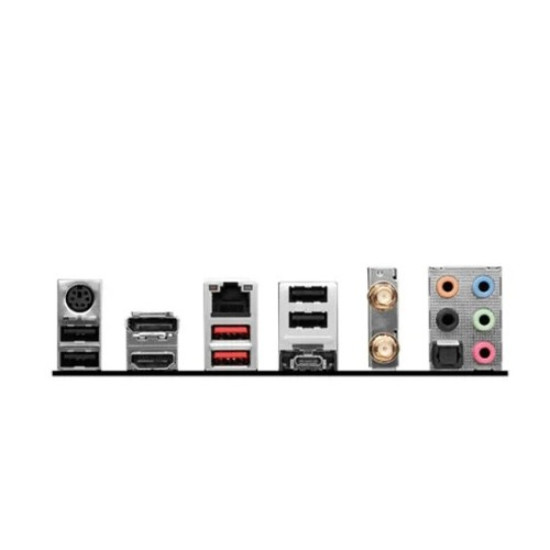

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| VGA (s) | 1x VGA |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

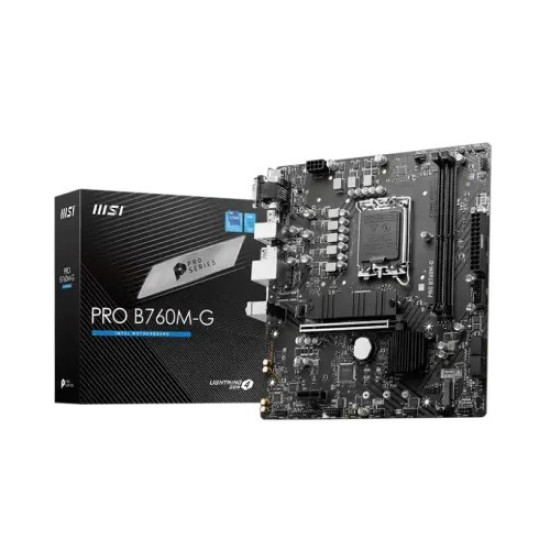

MSI PRO B760M-G mATX Motherboard is designed to deliver high performance and stability for both work and gaming setups. It supports the latest 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, all within the LGA 1700 socket. Powered by the Intel B760 chipset, this motherboard is built for durability and versatility, offering exceptional performance in a compact mATX form factor (220mm x 243.84mm). For memory, the MSI PRO B760M-G supports DDR5 with a maximum overclocking frequency of 6400 MHz (OC), allowing for superior speed and efficiency. With two memory slots and a maximum capacity of 96GB, it ensures fast and smooth multitasking for demanding applications. It also supports Intel XMP 3.0 for easy overclocking. The motherboard includes impressive graphics options with HDMI 2.1, DisplayPort 1.4, and VGA connectors, supporting up to 4K resolution at 60Hz. You can connect multiple displays and experience high-definition visuals. The board also features high-quality 7.1-channel Realtek ALC897 audio, providing immersive sound for all your media needs. In terms of connectivity, the MSI PRO B760M-G boasts a 2.5Gbps Realtek RTL8125B LAN port, ensuring fast and stable network performance. It also offers an array of USB ports, including USB 3.2 Gen1, USB 2.0, and more for efficient data transfer. The storage options are also robust, with two M.2 slots supporting PCIe 4.0 and SATA modes, plus four SATA 6Gbps ports for ample storage capacity. Additional features include multiple fan connectors, RGB LED support, TPM 2.0, and EZ Debug LED for easy troubleshooting. With a 3-year manufacturing warranty, the MSI PRO B760M-G mATX motherboard is a reliable choice for building a powerful and future-proof system.
