| Basic Information | |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 200mmx236.16mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 1x M.2 |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 2x DIMM |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory | 96GB |
| Connector & Ports | |
| HDMI | 1x HDMI 1.4 |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

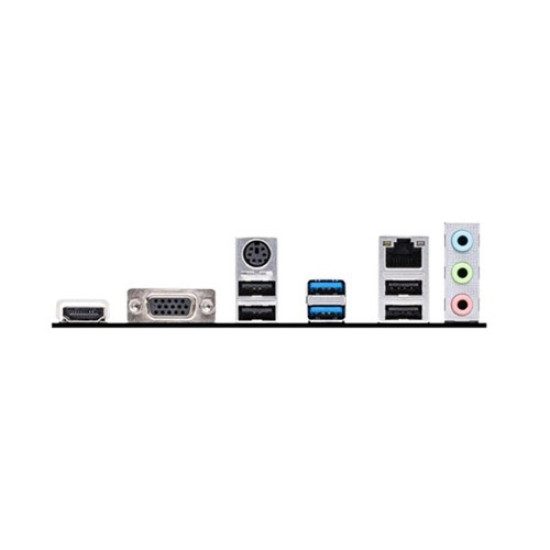

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 1x RGB LED connector(JRGB) |
| Warranty Information | |
| Warranty | 3 years |

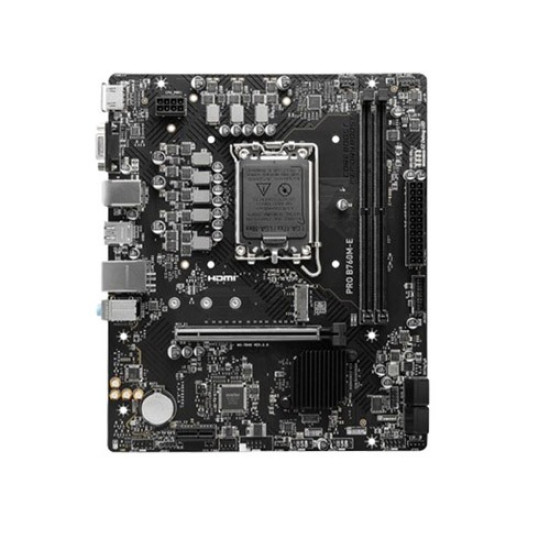

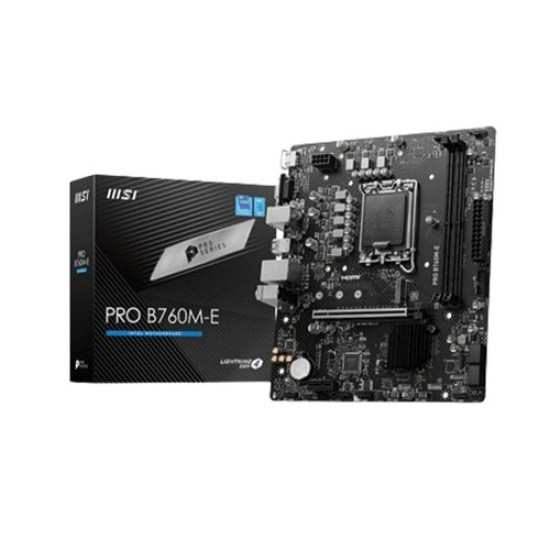

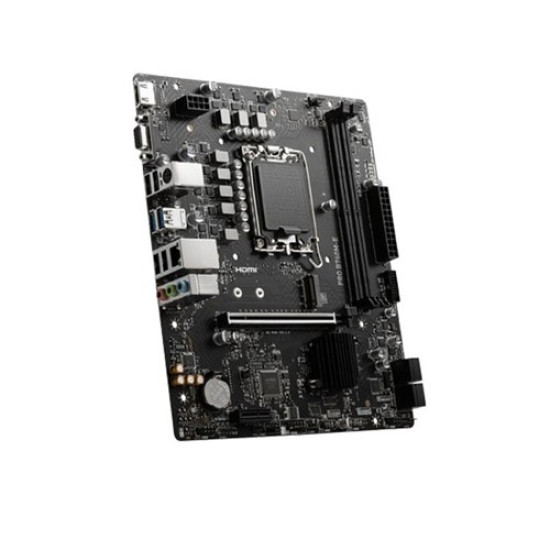

MSI PRO B760M-E DDR5 m-ATX Motherboard is designed for users seeking a reliable and high-performance foundation for their PC builds. Supporting Intel’s 14th, 13th, and 12th Gen Core processors, as well as Intel Pentium Gold and Celeron processors with an LGA 1700 socket, this motherboard is built with the latest technology to ensure seamless computing. Powered by the Intel B760 chipset, the MSI PRO B760M-E features an mATX form factor, making it a compact yet versatile option for a wide range of cases. It provides excellent expansion possibilities, including a PCI-E x16 slot for high-performance graphics cards and a PCI-E x1 slot for additional peripherals. The motherboard also includes one M.2 socket, supporting high-speed storage options, and four SATA 6G ports for more storage flexibility. The RAID support for SATA devices (RAID 0, RAID 1, RAID 5, and RAID 10) is perfect for users who need robust data management. Memory support is another highlight of the MSI PRO B760M-E, with two DIMM slots that can handle up to 96GB of DDR5 RAM. It supports memory speeds up to 6400MHz+ (OC), ensuring high-speed performance for gaming, content creation, or multitasking. For connectivity, the motherboard offers a range of ports, including USB 3.2 Gen 1 Type-A and USB 2.0, as well as HDMI 1.4 and VGA connectors for display options. Realtek’s RTL8111H Gigabit LAN ensures fast and reliable network connectivity With 7.1-channel high-definition audio powered by Realtek ALC897, users will enjoy superior sound quality. Additionally, the motherboard supports RGB LED lighting and TPM 2.0 for enhanced security. Built for durability and longevity, the MSI PRO B760M-E comes with a 3-year manufacturing warranty, making it a solid choice for users looking to build a future-proof system.
