| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 243.84mmx243.84mm |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics | |
| Graphics | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
| Connector & Ports | |
| HDMI | 2x HDMI |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Display Port (s) | 2x DisplayPort |

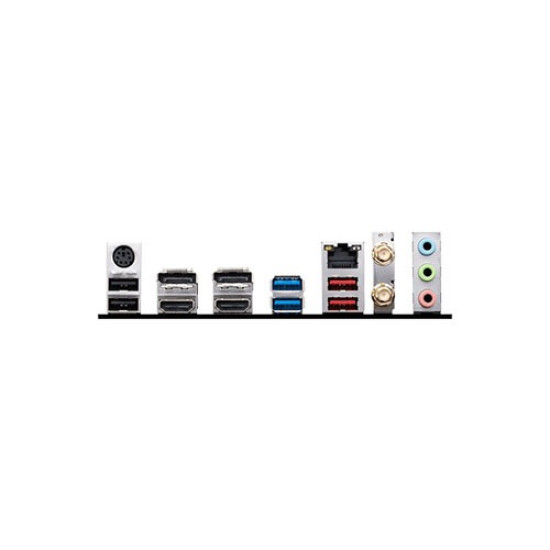

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Audio | 3x Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

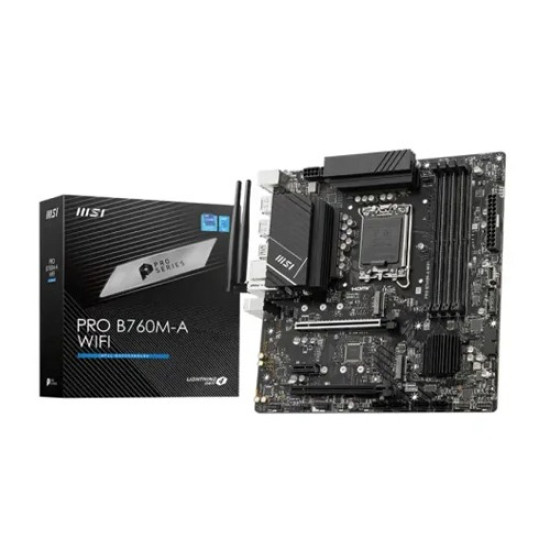

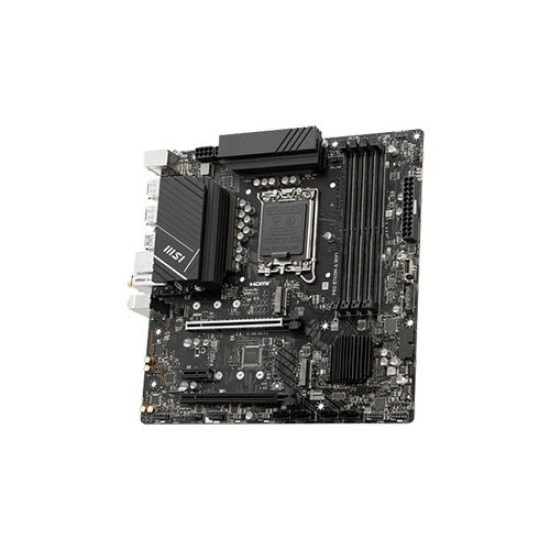

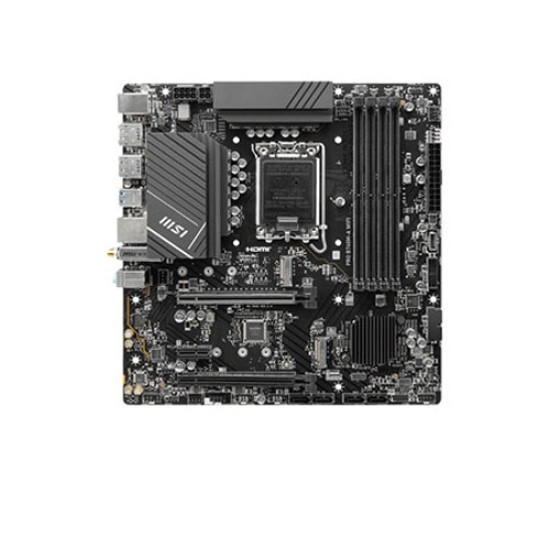

MSI PRO B760M-A WIFI mATX Motherboard is a high-performance, versatile motherboard designed for modern computing needs. Built to support 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors with its LGA 1700 socket, it is equipped with the powerful Intel B760 chipset for seamless multitasking and gaming. Featuring a compact mATX form factor (243.84mm x 243.84mm), this motherboard ensures compatibility with various PC builds while maximizing space efficiency. Its advanced audio setup, powered by the Realtek ALC897 Codec, delivers high-definition 7.1-channel sound for an immersive experience. The MSI PRO B760M-A WIFI offers a range of connectivity options, including dual PCI-E x16 slots, PCI-E x1 slots, and M.2 slots for lightning-fast storage. It supports PCIe 4.0 and 3.0, providing exceptional speed and flexibility for graphics cards and expansion devices. For memory, it features 4 DDR5 slots with support for up to 192GB of RAM, capable of handling demanding applications with speeds up to DDR5 6800+(OC). The motherboard also includes Intel XMP 3.0 for overclocking, ensuring peak performance. With its dual HDMI 2.1 and DisplayPort 1.4 outputs, the board supports 4K resolutions at 60Hz, making it ideal for high-definition video and gaming setups. It boasts extensive USB connectivity with both Type-A and Type-C ports across USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 standards. For networking, the board integrates Realtek RTL8125BG 2.5G LAN and Intel Wi-Fi 6E for ultra-fast, stable connections. Bluetooth 5.3 further enhances wireless communication. Enhanced with 4 EZ Debug LEDs, RGB lighting support, and a 3-year manufacturing warranty, the MSI PRO B760M-A WIFI mATX Motherboard is the perfect choice for professionals and gamers seeking top-tier performance, reliability, and innovation.
