| Basic Information | |
| Supported CPU |
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 220mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 7 |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 96GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Display Port (s) | 1x DisplayPort |

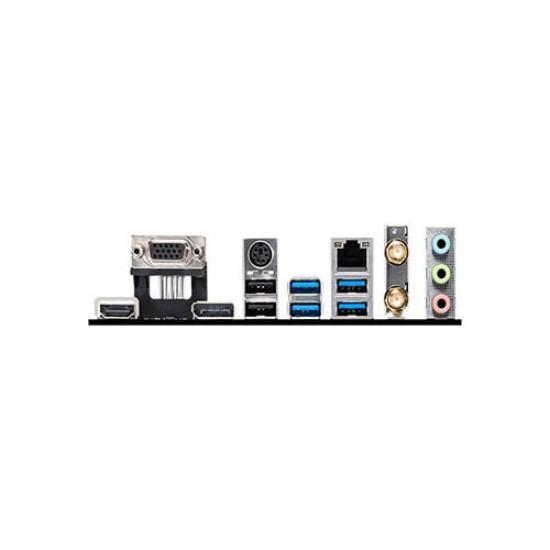

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| D-Sub (s) | 1x D-Sub |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

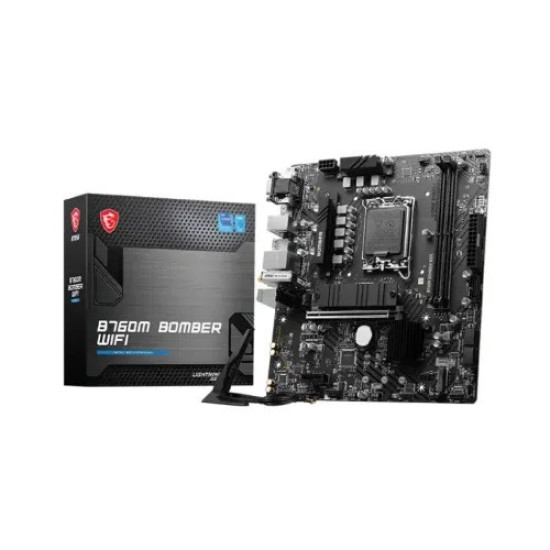

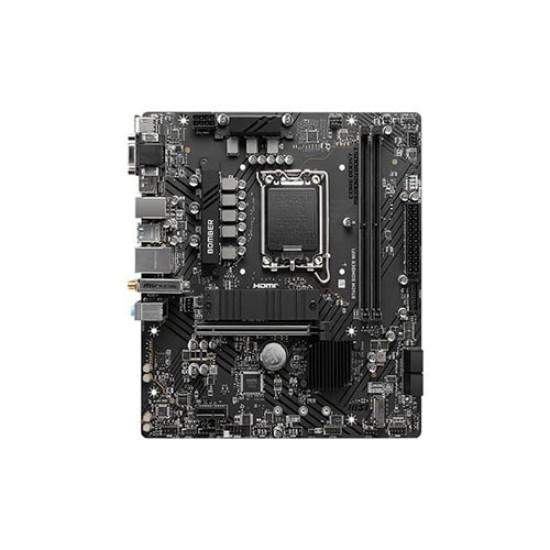

MSI B760M BOMBER WIFI mATX Motherboard is a high-performance motherboard designed for gamers, content creators, and professionals who demand powerful features and reliability. It supports 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, using the LGA1700 socket. Powered by the Intel B760 chipset, this motherboard provides a solid foundation for building a next-gen PC. In terms of memory, the MSI B760M BOMBER supports up to 96GB of DDR5 RAM, with speeds of up to 6400+ MHz when overclocked. It offers dual-channel memory architecture and Intel XMP 3.0 overclocking support for optimal performance. Whether you're gaming, streaming, or working on intensive tasks, this motherboard handles it all with ease. Connectivity is a strong point, with 2.5Gbps LAN through Realtek RTL8125B and Intel Wi-Fi 6E, ensuring fast and stable network connections. The board also supports Bluetooth 5.3, allowing seamless wireless communication. It features a variety of ports, including HDMI 2.1, DisplayPort 1.4, and D-Sub for versatile display options, and multiple USB 2.0 and USB 3.2 Gen1 Type A ports for connecting peripherals. For storage, the MSI B760M BOMBER offers two M.2 slots supporting PCIe 4.0, along with four SATA 6Gb/s ports, ensuring ample space for your SSDs and HDDs. RAID support (0, 1, 5, 10) gives you additional flexibility for data management. Other features include Realtek ALC897 7.1-channel HD audio, extensive RGB support, and multiple fan headers for efficient cooling. With a 3-year manufacturing warranty, the MSI B760M BOMBER WIFI is a dependable choice for building a powerful and future-proof PC.
