| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | ATX 243.84mmx304.8mm |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| Maximum Memory | 128GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Display Port (s) | 1x DisplayPort |

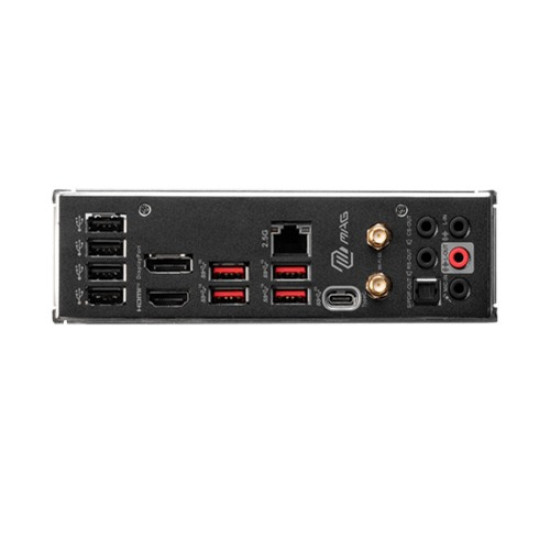

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| Audio | HD Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

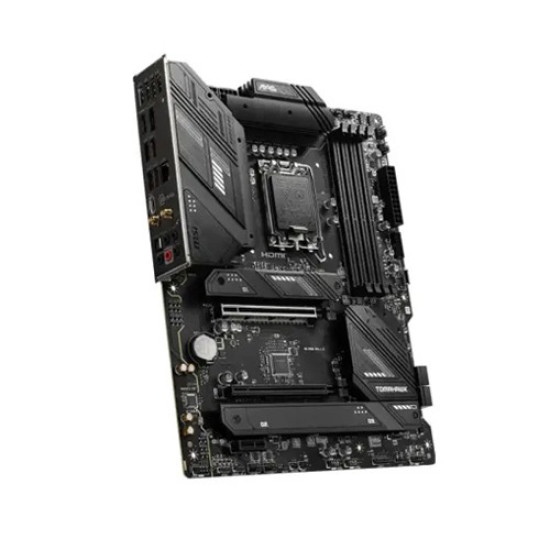

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard is a cutting-edge solution designed for gamers and PC enthusiasts seeking top-tier performance and reliability. This motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, utilizing the LGA1700 socket and the powerful Intel B760 chipset. Built in the ATX form factor, it provides robust expandability and a plethora of advanced features. It boasts PCIe 5.0 technology, offering one PCIe 5.0 x16 slot, one PCIe 3.0 x4 slot, and one PCIe 4.0 x1 slot for graphics and expansion needs. The motherboard supports up to 128GB of DDR5 RAM across four DIMM slots with impressive overclocking speeds reaching 7000+ MHz, ideal for demanding tasks and gaming. The board features comprehensive connectivity options, including multiple USB ports: USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-C, and numerous USB 2.0 and Type-A ports for convenience. For graphics, it supports 4K resolution via HDMI 2.1 and up to 8K resolution through DisplayPort 1.4. Storage is optimized with three M.2 slots supporting PCIe 4.0 and four SATA 6G ports, ensuring blazing-fast data transfers and versatile RAID configurations. Enhanced networking is enabled through Realtek 2.5Gbps LAN and Intel Wi-Fi 6E with Bluetooth 5.3, delivering seamless online gaming and wireless connectivity. Audio performance is powered by the Realtek ALC897 Codec, delivering 7.1-channel high-definition sound with support for S/PDIF output. Additional features include EZ Debug LEDs, customizable RGB lighting support, and a durable build with a 3-year warranty, ensuring peace of mind and longevity. The MSI MAG B760 TOMAHAWK WIFI DDR5 is the ultimate motherboard for gamers and creators, providing an unbeatable combination of performance, expandability, and reliability.
