| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Display Port (s) | 1x DisplayPort |

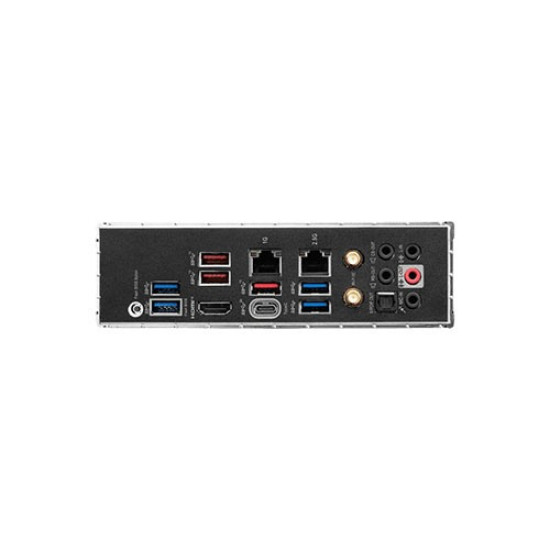

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

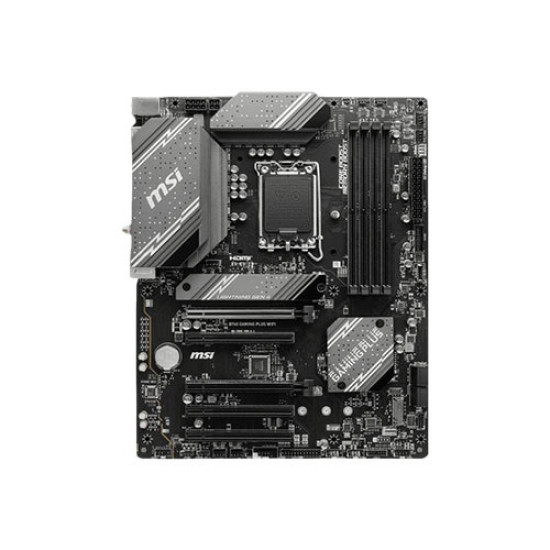

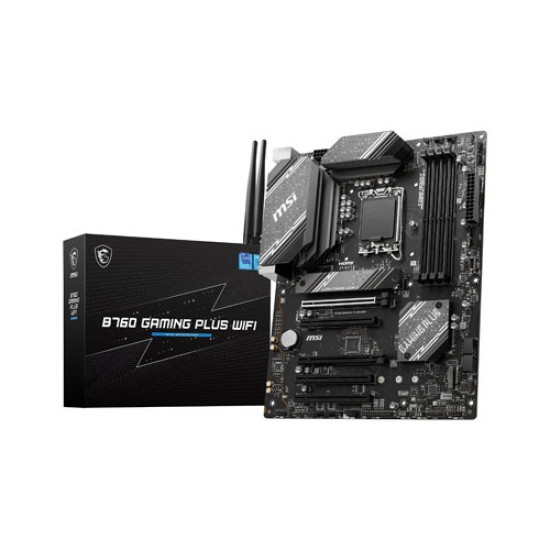

MSI B760 GAMING PLUS WIFI ATX Motherboard is a versatile powerhouse designed for gamers, professionals, and tech enthusiasts. This advanced motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors with its LGA1700 socket, ensuring seamless compatibility with the latest CPUs. Powered by the Intel B760 chipset, the motherboard combines robust performance and high-end features in an ATX form factor measuring 243.84mm x 304.8mm. It supports DDR5 memory with four slots, enabling overclocking speeds of up to 6800+ MHz and a maximum capacity of 192GB, ideal for demanding multitasking and high-speed gaming. For graphics enthusiasts, the MSI B760 comes equipped with HDMI 2.1 and DisplayPort 1.4 outputs, supporting up to 4K resolution at 60Hz. The motherboard ensures smooth visuals for immersive gaming or creative tasks. Expansion is simplified with five PCI-E slots, including Gen 4.0 and Gen 3.0, allowing customization for GPUs, storage, or other components. The board boasts an impressive audio setup with the Realtek ALC897 Codec, delivering 7.1-channel high-definition sound and S/PDIF output for crystal-clear audio. Connectivity is top-tier, featuring Intel Wi-Fi 6E and Realtek 2.5G LAN for ultra-fast internet speeds, plus Bluetooth 5.3 for seamless device pairing. Storage capabilities include dual M.2 slots with PCIe 4.0 support and four SATA 6G ports, offering ample options for speedy data access. The motherboard also supports RAID configurations for enhanced storage performance and redundancy. With EZ Debug LED, robust RGB lighting options, and multiple fan headers, the MSI B760 GAMING PLUS WIFI is designed for easy assembly, efficient cooling, and stunning aesthetics. Backed by a 3-year warranty, this motherboard ensures reliability and cutting-edge performance for any PC build.
