| Basic Information | |
| Supported CPU | Intel Socket LGA1700 For Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold And Celeron Processors* Supports Intel Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** * Refer To Www.Asus.Com For CPU Support List. ** Intel Turbo Boost Max Technology 3.0 Support Depends On The CPU Types. |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini ITX Form Factor 6.7 Inch X 6.7 Inch ( 17.02 Cm X 17.02 Cm ) |
| Graphics | |
| Graphics | 1 X DisplayPort** 1 X D-Sub 1 X HDMI Port*** * Graphics Specifications May Vary Between CPU Types. Please Refer To Www.Intel.Com For Any Updates. ** Support DisplayPort 1.4 With Max. Resolution Of 4K@60Hz. Please Refer To Www.Intel.Com For Any Updates. *** Support HDMI 2.1 With Max. Resolution Of 4K@60Hz. Please Refer To Www.Intel.Com For Any Updates. |
| Memory Specifications | |
| Slots | Intel 14th & 13th & 12th Gen Processors 1 X PCIe 4.0 X16 Slot |
| Supported Memory | 2 X DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual Memory Data Rate Depends On The CPU Types And DRAM Modules, For More Information Refer To Www.Asus.Com For The Memory QVL (Qualified Vendors Lists). |
| Connector & Ports | |
| USB (s) | Rear USB (Total 4 Ports) 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) Front USB (Total 4 Ports) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 X USB 2.0 Header Supports Additional 2 USB 2.0 Ports |
| Wireless Communication module | M.2 Slot Only (Key E, CNVi & PCIe)* *Wi-Fi Module Is Sold Separately. |
| Supported Storage | Total Supports 1 X M.2 Slot And 4 X SATA 6Gb/S Ports Intel H610 Chipset M.2 Slot (Key M), Type 2260/2280 (Supports PCIe 3.0 X4 Mode) 4 X SATA 6Gb/S Ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback Audio Features - Audio Shielding - Dedicated Audio PCB Layers * A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output. |

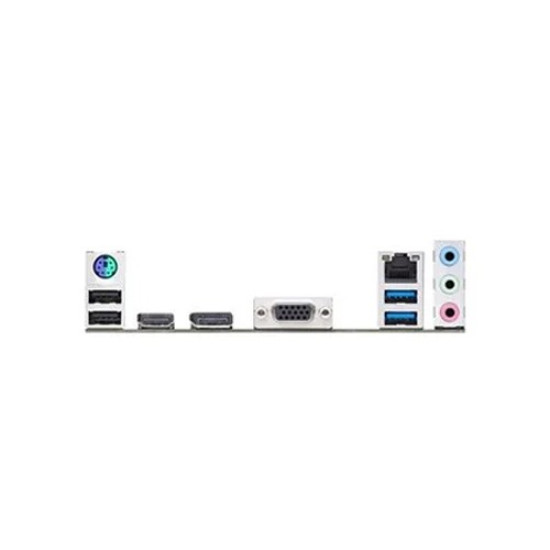

| Internal I/O Ports | 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) 1 X DisplayPort 1 X D-Sub Port 1 X HDMI Port 1 X V-M.2 Slot (Key E) 1 X Realtek 1Gb Ethernet Port 3 X Audio Jacks 1 X PS/2 Keyboard/Mouse Combo Port |
| Software | |
| Operating System | Windows 11 64-Bit, Windows 10 64-Bit |
| Others Information | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) - Q-Slot ASUS Thermal Solution - Aluminum Heatsink Design |
| Warranty Information | |
| Warranty | 3 Years |

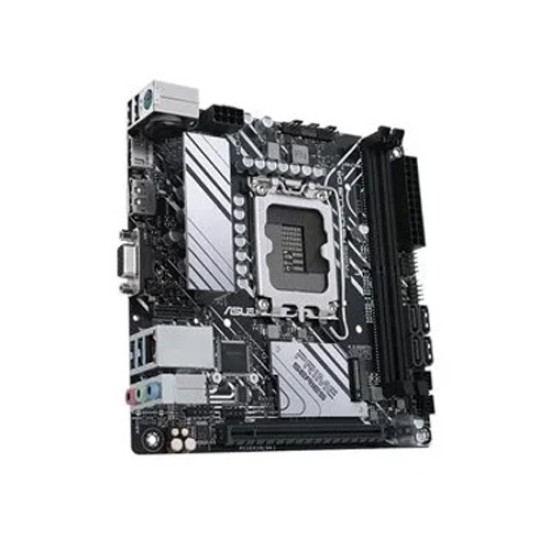

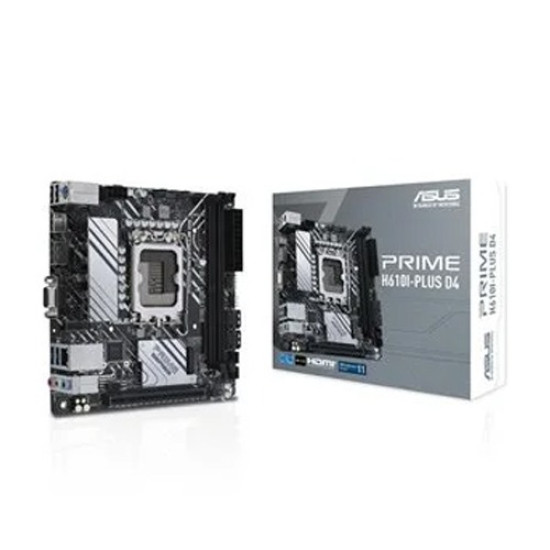

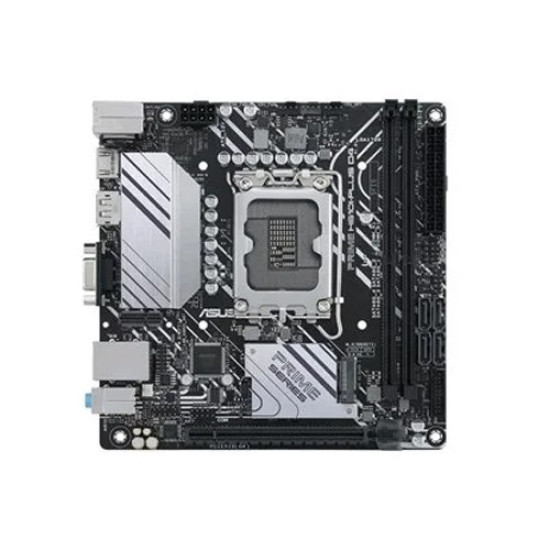

ASUS PRIME H610I-PLUS D4 DDR4 motherboard is a high-performance, compact Mini ITX motherboard designed for Intel's 12th, 13th, and 14th Gen processors. It features the Intel H610 chipset, offering robust performance and efficiency for gaming, productivity, and home use. With an Intel Socket LGA1700, it supports Intel Core processors, including the 14th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, providing flexibility in CPU selection. This motherboard also supports Intel Turbo Boost Technology 2.0 and 3.0, enhancing processing power and speed when required. The motherboard boasts dual-channel DDR4 memory architecture, supporting up to 64GB of memory with speeds ranging from 2133 MHz to 3200 MHz, which ensures smooth multitasking and faster data processing. It also supports Intel Extreme Memory Profile (XMP) for overclocking. For graphics, the ASUS PRIME H610I-PLUS D4 provides multiple display options: DisplayPort 1.4, HDMI 2.1, and D-Sub, with 4K resolution support at 60Hz. The motherboard offers a variety of connectivity options, including 4 USB ports on the rear panel (2 x USB 3.2 Gen 1, 2 x USB 2.0), and additional front USB headers. It features one M.2 slot and four SATA 6Gb/s ports for fast storage. Additional features include Realtek 7.1 Surround Sound HD Audio, a 1Gb Ethernet port, and Wi-Fi module support (sold separately). The board also includes ASUS's 5X Protection III, providing advanced protection against electrical surges, overvoltage, and physical damage. With a three-year warranty and an extensive suite of bundled software, this motherboard is a reliable choice for high-performance builds.
