| Main Feature | ||
| Port | 16 | |
| Network Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az | |
| Access Method | CSMA/CD | |
| Transmission Method | Store and Forward | |
| Data Transmission Rate | 10/100Mbps(Half-duplex) 20/200Mbps(Full-duplex) |
|
| MAC Address Table | 8K, auto-learning & auto-aging | |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 5%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Hardware Features | ||
| Interface | 16 * 10/100M bps RJ45 port, Auto-Negotiation, Auto MDI/MDIX | |
| LED | PWR, 1X-16X | |
| Power Supply | DC 9V/500mA(Output) | |
| Dimensions (L x W x H) | 230 x 230 x 70 mm | |
| Weight | 1.2 pounds | |
| Manufacture Warranty | ||
| Warranty | 01 Year Warranty | |

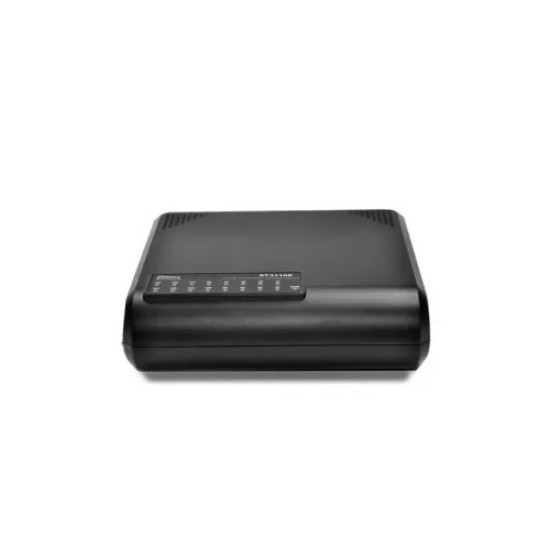

The Netis ST3116P 16-Port Fast Ethernet Switch is a robust and versatile networking solution designed to cater to the connectivity needs of small to medium-sized networks. With its impressive array of features, this switch provides seamless and reliable data transfer for a multitude of devices. Featuring 16 10/100Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX support, the Netis ST3116P ensures easy installation and optimal performance. The switch adheres to industry standards, including IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, and IEEE 802.3az, ensuring compatibility with various network devices. Utilizing CSMA/CD as the access method and Store and Forward as the transmission method, this Ethernet switch ensures efficient and secure data transfer. It supports data transmission rates of 10/100Mbps in half-duplex mode and 20/200Mbps in full-duplex mode, accommodating diverse networking requirements. Equipped with a high-capacity MAC Address Table supporting 8K addresses, the Netis ST3116P facilitates efficient management of connected devices with auto-learning and auto-aging capabilities. The switch operates within an operating temperature range of 0℃ to 40℃ and a storage temperature range of -20℃ to 70℃, providing reliability in varied environmental conditions. The operating and storage humidity range from 5% to 90% (non-condensing) further enhances its adaptability. The switch features LED indicators for power (PWR) and each of the 16 ports (1X-16X), allowing users to monitor the status at a glance for quick diagnostics. Powered by a DC 9V/500mA output, it ensures a stable power supply for uninterrupted network connectivity. Backed by a 1-year manufacturer's warranty, the Netis ST3116P emphasizes its durability and commitment to quality, providing users with confidence in their investment. In summary, this 16-Port Fast Ethernet Switch is an excellent choice for those seeking a high-performance and reliable networking solution for their home or office environment.
