| Main Feature | ||
| Port | 8 | |
| Network Standard | IEEE 802.3u 1000Base-TX, IEEE 802.3u 100BASE –TX, IEEE 802.3 10BASE –T, IEEE 802.3at /af, IEEE 802.3x Flow Control |
|
| Access Method | CSMA/CD | |
| Transmission Method | Store and Forward | |
| Data Transmission Rate | 10/100/1000 Mbps | |
| MAC Address Table | 8K, auto-learning & auto-aging | |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH, non-condensing Storage Humidity: 5%~90%RH, non-condensing |
|
| Hardware Features | ||
| Interface | 8 * 10/100/1000Mbps RJ45 port, including 4 PoE ports (Port 1-Port 4 | |
| LED | PWR, MAX, 1-4 PoE, 1-8 1000M, 1-8 LINK/ACT | |
| Power Supply | 100-240 V AC/50-60Hz | |
| Dimensions (L x W x H) | 280 x 173 x 43mm | |
| Manufacture Warranty | ||
| Warranty | 01 Year Warranty | |

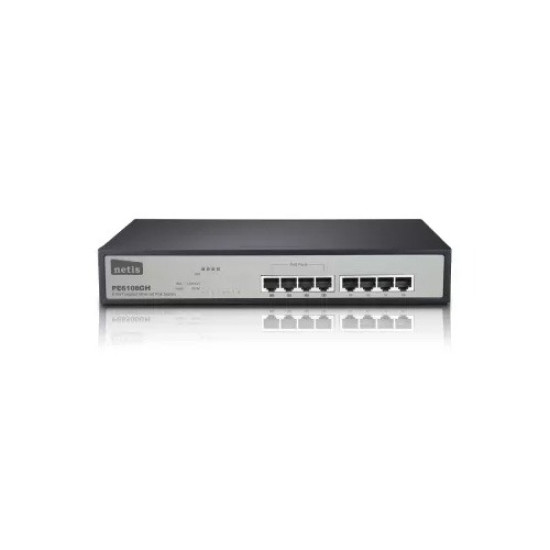

The Netis PE6108GH is a robust 8-port Gigabit Ethernet PoE (Power over Ethernet) switch designed to meet the demands of modern networking applications. This switch offers a high-performance solution for small to medium-sized networks, combining gigabit speeds and PoE functionality. Featuring eight 10/100/1000Mbps RJ45 ports, including four PoE ports (Port 1-Port 4), the PE6108GH adheres to industry standards such as IEEE 802.3u 1000Base-TX, IEEE 802.3u 100BASE-TX, IEEE 802.3 10BASE-T, IEEE 802.3at/af, and IEEE 802.3x Flow Control. The inclusion of Power over Ethernet simplifies the deployment of PoE-enabled devices like IP cameras, access points, and VoIP phones, eliminating the need for additional power sources and reducing cable clutter. The switch operates using the CSMA/CD access method and employs a store-and-forward transmission method, ensuring reliable and efficient data transfer at rates of 10/100/1000 Mbps. The MAC address table supports up to 8K entries and utilizes auto-learning and auto-aging mechanisms for optimal network performance. Equipped with comprehensive LED indicators, including PWR, MAX, 1-4 PoE, 1-8 1000M, and 1-8 LINK/ACT, users can easily monitor the switch's status and performance. The switch has a sturdy build, with dimensions of 280 x 173 x 43mm, making it suitable for desktop installations. The Netis PE6108GH operates in a wide range of environmental conditions, with an operating temperature of 0℃ to 40℃ and a storage temperature of -40℃ to 70℃. It maintains operational efficiency in humidity ranging from 10% to 90% RH (non-condensing) during operation and 5% to 90% RH (non-condensing) during storage. Backed by a one-year warranty, the Netis PE6108GH ensures reliability and performance, making it an ideal choice for businesses seeking a feature-rich Gigabit Ethernet PoE switch for their network infrastructure.
