| Hardware |
| Interface |
4*10/100Mbps POE ports（Data/Power）
2*10/100M uplink RJ45 ports (Data)
|
|
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD)
Store-and-forward switching scheme
Support IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging
|
|
Standards
|
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control
|
|
Mode
|
Normal switch mode/Extend mode
|
|
Data Transfer Rate
|
Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex)
Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex)
|
|
Store & Forwarding
|
Yes |
|
Switching Capacity
|
1.2G |
|
MAC Address
Table Size
|
2K |
|
Jumbo Frame
|
2048 byte
|
|
Environment
|
Operation Temperature：0℃～40℃
Storage Temperature：-40℃～70℃
Operation Humidity：10%～90% RH Non-condensing
Storage Humidity：5%～90% RH Non-condensing
|
|
Power Input POE
Standards
|
Single port maximum power 30W,
Whole switch maximum power 58W
Support over-current,over-voltage and short-circuit protection
Support Soft Start of High Power PD
Support sequential boot-up
Power Supply Pin:12+/36-
AC 110~240V 50/60HZ
|
|
Cabling type
|
100Base-TX: Cat 5e or better UTP/STP(≤100m)
10Base-TX: Cat 5e or better UTP/STP(≤250m)
|
|
Dimensions
(L x W x H )
|
124mm*115mm*33mm
|

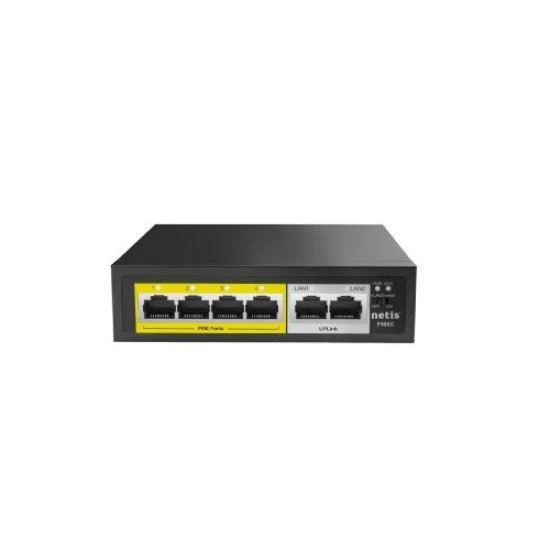

Netis P106C 4POE+2RJ45 100M Standard POE Switch
The Netis P106C is a reliable and efficient 6-port Ethernet switch designed to meet the demands of modern network setups. With 4 Power over Ethernet (PoE) ports providing both data and power, along with 2 standard RJ45 uplink ports, this switch is a versatile solution for various networking needs. Adhering to IEEE 802.3 and IEEE 802.3u standards for Ethernet and Fast Ethernet protocols, the P106C ensures seamless compatibility with a wide range of network devices. It supports IEEE 802.3af/at compliant Powered Devices (PD), making it suitable for devices such as IP cameras, access points, and more. The switch employs a store-and-forward switching scheme, providing reliable data transmission. It supports IEEE 802.3X full duplex and Backpressure half duplex, enhancing network efficiency. The MAC address auto-learning and auto-aging features contribute to efficient network management. Operating in both normal switch mode and extended mode, the P106C offers flexibility based on specific network requirements. The data transfer rate is optimized for different Ethernet types, with speeds of 10Mbps or 20Mbps in half-duplex and 100Mbps or 200Mbps in full-duplex. With a switching capacity of 1.2G and a MAC address table size of 2K, the switch ensures sufficient bandwidth for data-intensive applications. It supports Jumbo Frames up to 2048 bytes, further enhancing data transfer efficiency. The switch is equipped with over-current, over-voltage, and short-circuit protection for enhanced safety and durability. The Soft Start feature for high-power PD prevents power surges during startup. With sequential boot-up support, the switch ensures a smooth and stable power-on sequence. Operating in a temperature range of 0℃ to 40℃ and a storage temperature range of -40℃ to 70℃, the P106C is suitable for various environments. The humidity tolerance, ranging from 10% to 90% RH for operation and 5% to 90% RH for storage, further expands its versatility. With a maximum power supply of 58W and support for AC 110-240V 50/60Hz input, the P106C is a reliable and power-efficient networking solution. Its compact dimensions (124mm*115mm*33mm) make it suitable for desktop or wall-mounted installations, ensuring a space-efficient and organized network setup.
