| Basic Information | |
| Supported CPU | Intel Core Ultra Processors(Series 2) |
| Chipset | Intel Z890 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors - Audio cover |
| Expansion Slots | |
| PCI | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site |
| M.2 Socket | Supports 5 x M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Graphics | |
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Memory Specifications | |
| Type | DDR5 |
| Slots | 4 x DIMM slots |
| Supported Memory | Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM) |
| Maximum Memory | 192GB |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
| Display Port (s) | 1 x DisplayPort 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs |
| USB (s) | Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4 |
| Supported Storage | 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Audio | 2 x Gold-plated audio jacks |

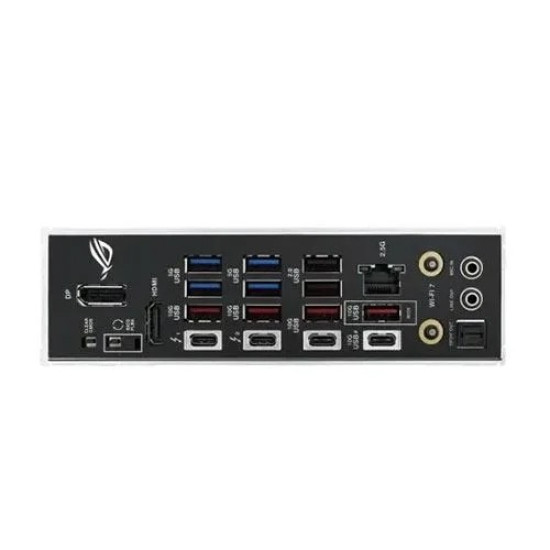

| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Others Information | |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
| Warranty Information | |
| Warranty | 3 Year Warranty |

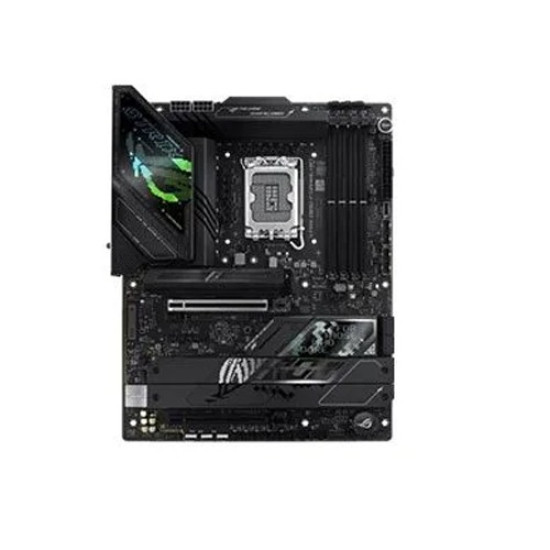

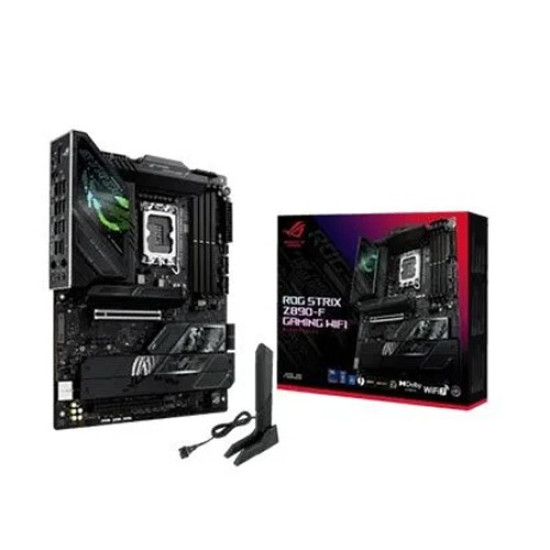

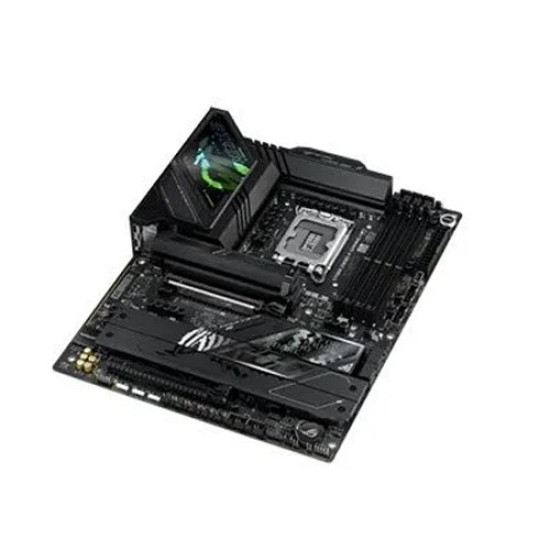

ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard is a high-performance solution designed for gaming enthusiasts and professionals who demand superior speed, stability, and functionality. Powered by the Intel Z890 Chipset, this motherboard is optimized to support the latest Intel Core Ultra Processors (Series 2), delivering exceptional computing power for gaming, content creation, and multitasking. Its ATX form factor ensures compatibility with a wide range of PC builds. This motherboard supports DDR5 memory, offering unparalleled speeds of up to 8600+ MT/s (overclocked) and a maximum capacity of 192GB across four DIMM slots, ensuring smooth operation for memory-intensive tasks. With five M.2 slots and four SATA ports, it offers extensive storage options, including PCIe 5.0 and 4.0 for faster data transfer rates. The ROG SupremeFX audio system, equipped with the ALC4080 codec and advanced features like Savitech SV3H712 AMP and audio shielding, delivers immersive 7.1 surround sound for an enhanced gaming and media experience. Additionally, Wi-Fi 7 and Bluetooth 5.4 provide next-gen connectivity, while the 2.5Gb Ethernet port ensures high-speed wired networking. The board is packed with cutting-edge features, including Thunderbolt™ 4, PCIe 5.0 x16 slots, and extensive I/O ports for USB 3.2, USB-C, and HDMI. Enhanced cooling solutions, such as VRM heatsinks and M.2 heatsink backplates, ensure optimal thermal management during intense gaming sessions With ASUS-exclusive utilities like AI Overclocking, Aura Sync RGB, and Armoury Crate, the ROG STRIX Z890-F allows users to fine-tune performance and aesthetics effortlessly. Backed by a 3-year warranty, this motherboard sets a new standard for gaming PCs.
