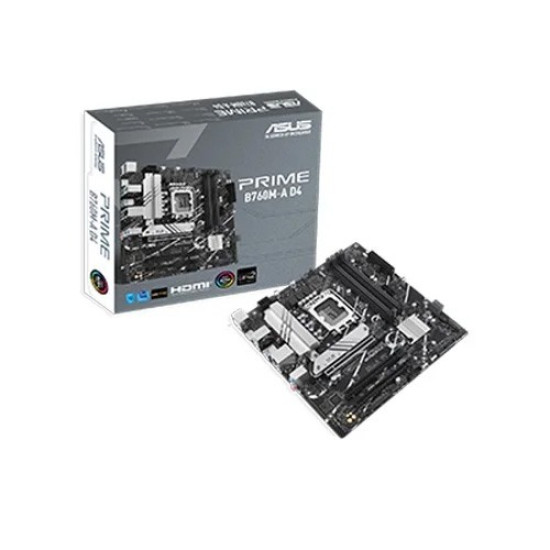

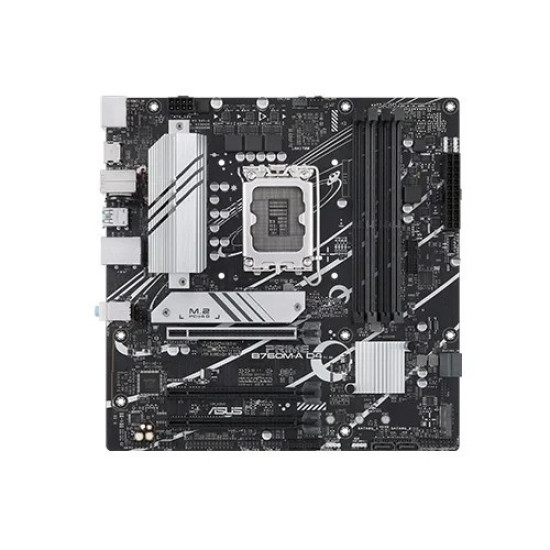

Name: Asus PRIME B760M-A 14th Gen mATX Motherboard
Brand: Asus
Price: 20299.00 BDT
Availability: InStock

Asus PRIME B760M-A 14th Gen mATX Motherboard

New -25 %

Asus PRIME B760M-A 14th Gen mATX Motherboard

Key Feature

- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 128GB, DDR5
- Graphics Output: 1 x DisplayPort, 2 x HDMI
- Features: 1 x Realtek 2.5Gb Ethernet

View more details

Status: In Stock
Brand: Asus
Model: PRIME B760M-A

Based on 0 reviews. - Write a review

20,299৳

27,100৳

Ex Tax: 20,299৳

Qty

Add to Cart

Buy Now Call For Price

Add to Wish List Compare this Product

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket	Total supports 2 x M.2 slots
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Memory Specifications
Type	DDR5
Slots	4 x DIMM
Supported Memory	4 x DIMM slots, Max. 128GB, DDR5 7200+ (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 128GB
Connector & Ports
HDMI	2 x HDMI port
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	3 x Audio jacks

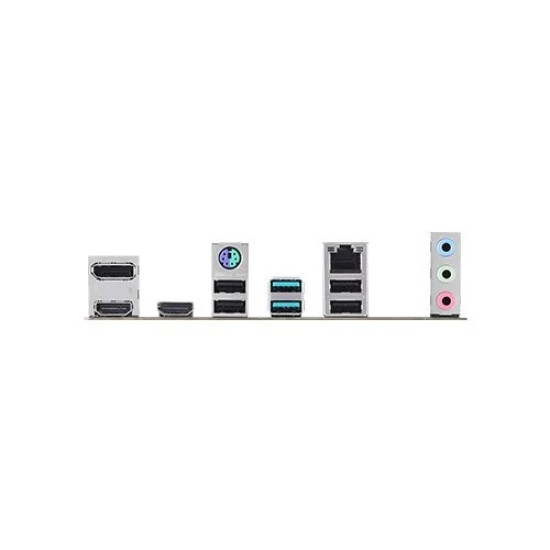

Internal I/O Ports	Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Warranty Information
Warranty	3 years warranty

Asus PRIME B760M-A 14th Gen mATX Motherboard

Asus PRIME B760M-A 14th Gen mATX Motherboard is a high-performance motherboard designed to support Intel's latest 14th, 13th, and 12th Gen processors. Featuring the LGA1700 socket, it’s optimized for Intel Core, Pentium Gold, and Celeron processors, ensuring excellent compatibility and performance. This motherboard is equipped with the Intel B760 chipset, enabling advanced features like Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced processing power. Built with a compact mATX form factor (9.6 x 9.6 inches), the B760M-A is perfect for systems where space is a consideration without compromising on performance. It boasts four DDR5 DIMM slots, supporting up to 128GB of memory at speeds of 7200MHz (overclocked), ensuring fast data transfer and multitasking capabilities. The motherboard also supports Intel Extreme Memory Profile (XMP) and OptiMem II for optimized memory performance. For connectivity, the Asus PRIME B760M-A includes 1x DisplayPort and 2x HDMI ports supporting up to 4K at 60Hz, making it a great choice for multimedia setups. Additionally, it features Realtek 2.5Gb Ethernet for fast internet speeds, along with USB 3.2 Gen 2 ports for high-speed data transfer. This motherboard is equipped with advanced cooling solutions like VRM heatsinks and an M.2 heatsink for improved thermal management, ensuring that your system remains stable during demanding tasks. For extra durability and protection, it includes ASUS 5X Protection III, offering features like DIGI+ VRM and SafeSlot Core+. With a 3-year warranty, the Asus PRIME B760M-A is a reliable, powerful motherboard for building high-performance systems.

Features

Intel LGA1700 socket supports 14th, 13th, and 12th Gen Intel processors.
Intel B760 chipset for stable and high-performance computing.
4 x DIMM slots, supporting up to 128GB of DDR5 memory (7200MHz OC).
1 x PCIe 4.0 x16 slot and multiple expansion options for peripherals.
2 x M.2 slots and 4 x SATA 6Gb/s ports for flexible storage configurations.
1 x DisplayPort and 2 x HDMI 2.1 ports supporting 4K at 60Hz output.
Realtek 7.1 Surround Sound HD Audio CODEC with premium audio features.
Realtek 2.5Gb Ethernet for fast and reliable network connectivity.
6 USB ports (2 x USB 3.2 Gen 2 and 4 x USB 2.0) for fast data transfer.
Advanced cooling with VRM heatsinks, M.2 heatsink, and fan headers.
Aura Sync RGB lighting with customizable RGB header and Addressable Gen 2 headers.
ASUS 5X Protection III for enhanced durability and protection.
Q-DIMM, Q-Slot, and Q-LED for easy installation and troubleshooting.
3-year warranty for reliable long-term use.
