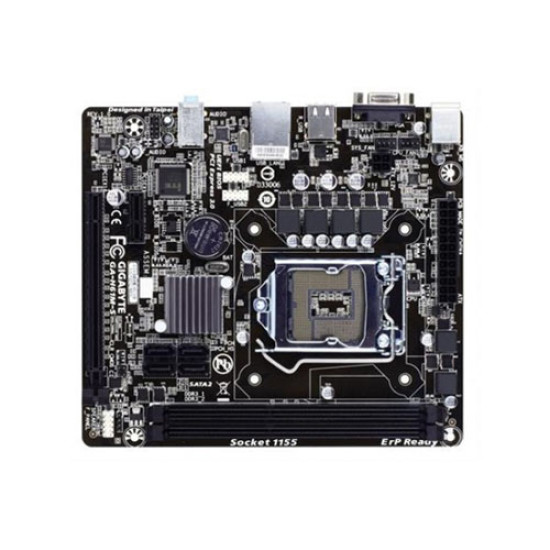

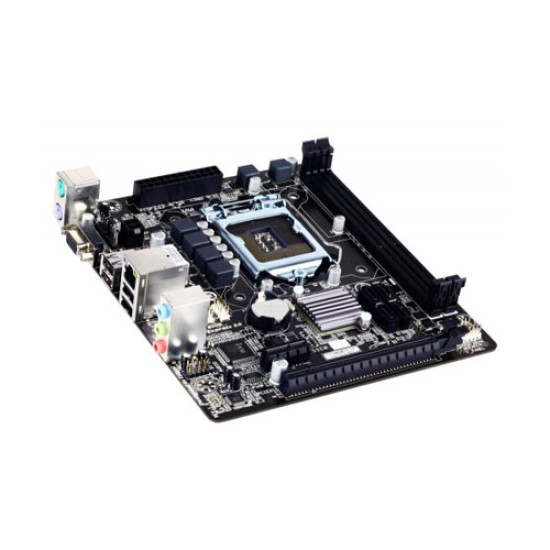

| Basic Information | |
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package |
| Chipset | Intel H61 Express Chipset |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm |
| Graphics | |
| Max Shared Memory | 1 GB |
| Memory Specifications | |
| Slots | 2 x 1.5V DDR3 DIMM sockets |
| Supported Memory | Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | 16 GB |

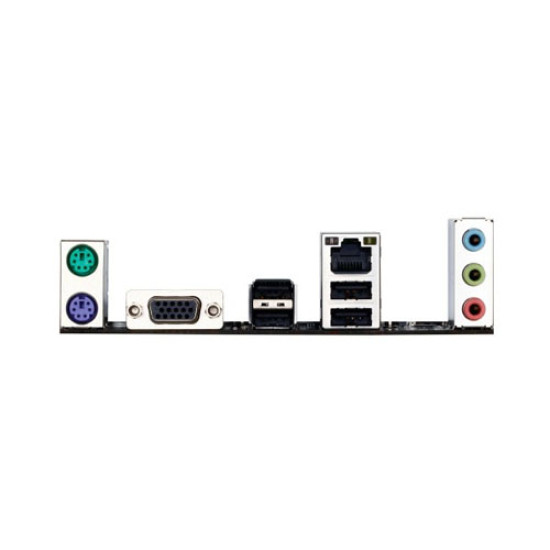

| Connector & Ports | |
| HDMI | No |
| USB (s) | 4 x USB 2.0/1.1 headers |
| LAN Port (s) | 1 x RJ-45 port |
| Supported Storage | 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices |
| Audio | 3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
| D-Sub (s) | 1 x D-Sub port |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
Power Failure Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Intel Rapid Start Technology
Intel Rapid Start Technology gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.
Intel Smart Connect Technology
Intel Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends’ updates to be delivered—just press the ‘on’ button and you’re up-to-date and ready to go.
Auto Sync with Cloud
No manual interaction required to synchronize with cloud services.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE’s highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
