Name: ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard
Brand: Asus
Price: 18200.00 BDT
Availability: InStock

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

New -4 %

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

Key Feature

- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Ultrafast connectivity
- Comprehensive cooling
- Aura Sync RGB

View more details

Status: In Stock
Brand: Asus
Model: ASUS Prime B550 Plus

Based on 0 reviews. - Write a review

18,200৳

19,000৳

Ex Tax: 18,200৳

Qty

Add to Cart

Buy Now Call For Price

Add to Wish List Compare this Product

Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Graphics
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Memory Specifications
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O. C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC , Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O. C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum Memory	128GB
Connector & Ports
Display Port (s)	1 x DisplayPort 1.2

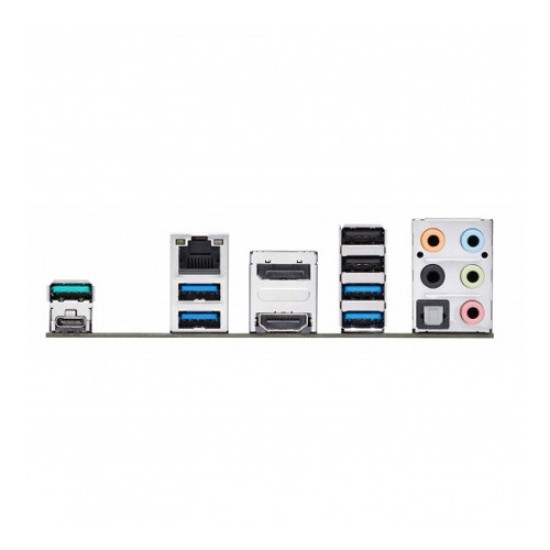

USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8111H ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
TPM (Trusted Platform Module )	1 x SPI TPM header
Ports & Slots
HDMI Port	1 x HDMI 2.1(4K@60HZ)
Others Information
Special Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Warranty Information
Warranty	03 Years Warranty

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard is a high-performance motherboard designed to meet the needs of gamers, content creators, and PC enthusiasts. Equipped with the powerful AMD B550 chipset, it supports AMD Ryzen 5000, 4000G series, and 3rd generation Ryzen processors, ensuring excellent compatibility and seamless performance for modern computing tasks. This ATX motherboard features an advanced dual-channel DDR4 memory architecture with four slots, allowing support for up to 128GB of RAM. It is optimized for high-speed memory modules, reaching speeds of up to 4800 MHz (OC). The motherboard also includes multiple expansion slots, such as PCIe 4.0 and PCIe 3.0, to accommodate graphics cards, storage, and other peripherals, ensuring your build is future-proof and versatile. The ASUS Prime B550 Plus is equipped with three M.2 slots and six SATA 6Gb/s ports, offering extensive storage options with support for RAID configurations. Its onboard graphics capabilities include an HDMI 2.1 port and a DisplayPort 1.2, delivering 4K resolution at 60Hz for vivid visuals. For connectivity, the motherboard includes eight rear USB ports, including USB 3.2 Gen 2 Type-A and Type-C, as well as six front USB ports, ensuring quick and easy access for your devices. With Realtek RTL8111H LAN support and ASUS LANGuard, it offers stable and secure network connections. This motherboard excels in audio performance with Realtek ALC887 7.1-Channel HD Audio, providing immersive sound for entertainment and gaming. The ASUS 5X Protection III and exclusive software like Armoury Crate ensure reliability, safety, and customization. The ASUS Prime B550 Plus combines cutting-edge features with durable build quality, making it an ideal choice for high-performance PCs. Backed by a 3-year warranty, it’s a solid investment for your next build.

Features

Supports AMD Ryzen 5000, 4000G Series, and 3rd Gen Ryzen processors.
Dual-channel DDR4 memory with up to 128GB capacity and speeds up to 4800 MHz (OC).
Equipped with PCIe 4.0 x16 for high-speed GPU and expansion options.
Features three M.2 slots and six SATA 6Gb/s ports for versatile storage.
Integrated HDMI 2.1 and DisplayPort 1.2 for 4K@60Hz video output.
Realtek ALC887 7.1-Channel HD Audio for premium sound quality.
Offers USB 3.2 Gen 2 (Type-A & Type-C) and USB 3.2 Gen 1 ports for fast connectivity.
Built with ASUS 5X Protection III for enhanced durability and safety.
Supports Aura Sync with RGB and Addressable Gen 2 headers for customization.
Backed by a 3-year manufacturing warranty for reliability and peace of mind.
