Asus PRIME A620M-K-CSM Motherboard

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

Status: In Stock
Brand: Asus
Model: PRIME A620M-K-CSM

Based on 0 reviews. - Write a review

12,999৳

13,890৳

Ex Tax: 12,999৳

Add to PC Builder

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD A620 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Graphics
Graphics	1 x VGA port 1 x HDMI port * Graphics specifications may vary between CPU types
Memory Specifications
Type	DDR5
Slots	2 x DIMM slots
Supported Memory	DDR5 7200+ (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/54 00(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory	Max 96GB
Connector & Ports
HDMI	1x HDMI 2.1
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet
Supported Storage	1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports
Audio	3 x Audio jacks

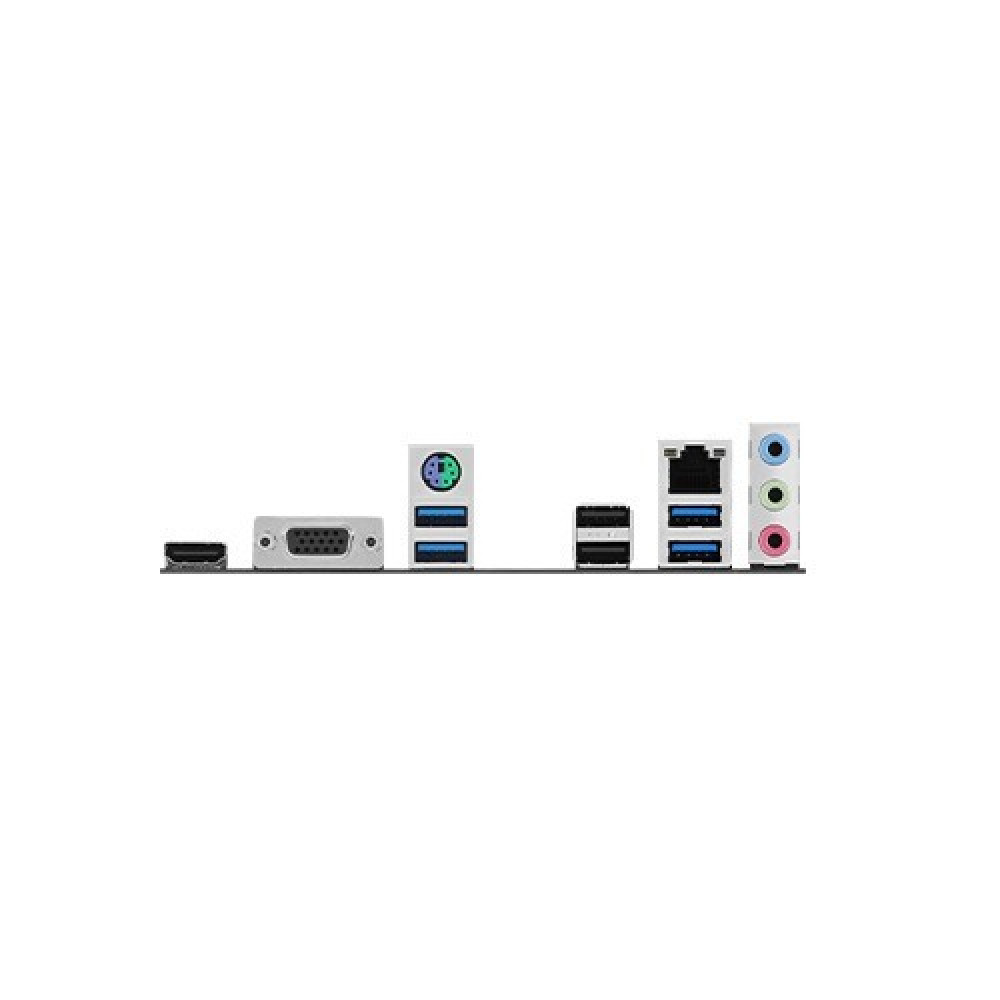

Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
VGA (s)	1 x VGA port
Others Information
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers
Warranty Information
Warranty	3 Years Warranty

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

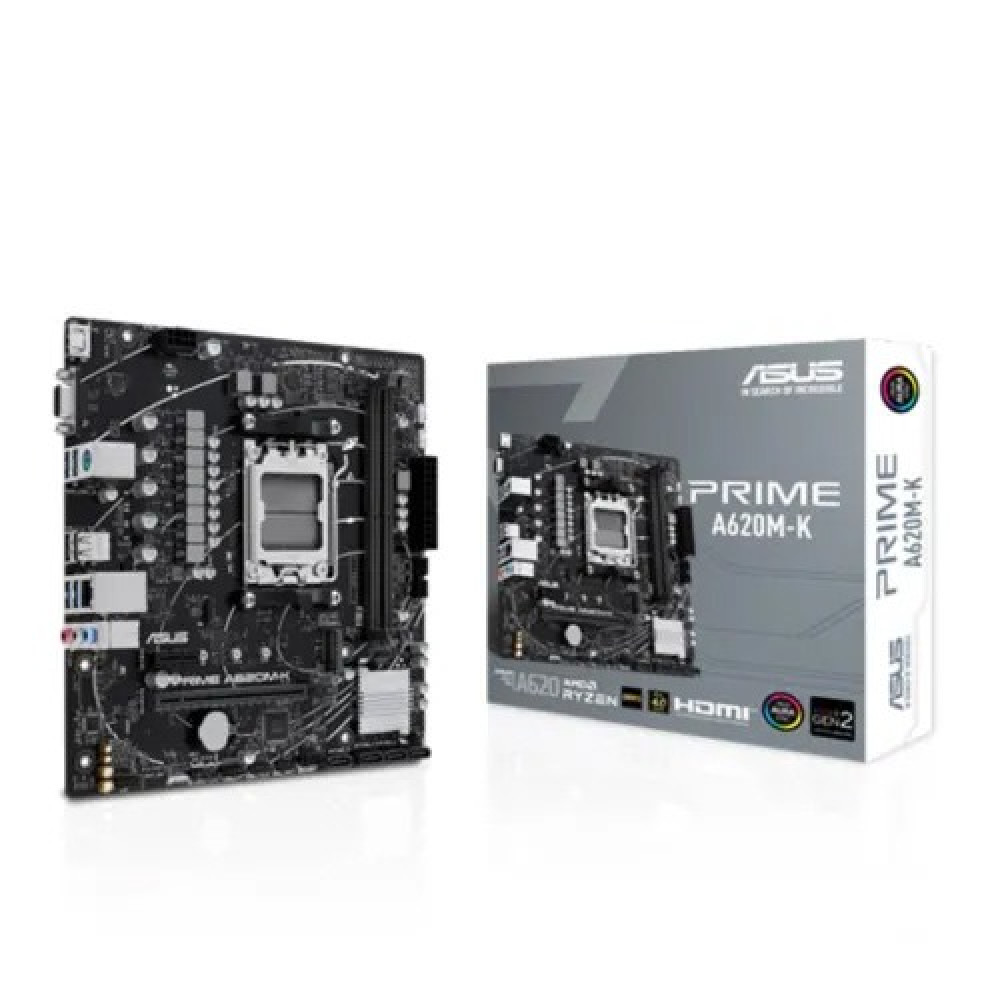

Asus PRIME A620M-K-CSM AM5 mATX Motherboard is a robust and versatile motherboard designed to meet the needs of modern computing enthusiasts. Built with AMD's latest Socket AM5, it supports AMD Ryzen 9000, 8000, and 7000 series desktop processors, ensuring high performance and compatibility for a variety of applications. Powered by the AMD A620 chipset, this motherboard delivers reliable and efficient operation With a compact micro-ATX form factor, the Asus PRIME A620M-K-CSM is perfect for space-saving PC builds. It features 2 DIMM slots supporting up to 96GB of DDR5 memory, with speeds reaching an impressive 7200MHz (OC). This motherboard is optimized for multitasking and overclocking, providing an excellent foundation for gaming, productivity, or content creation. The PRIME A620M-K-CSM boasts superior connectivity options, including an M.2 slot supporting PCIe 4.0 x4, four SATA 6Gb/s ports, HDMI 2.1, and a VGA port for seamless video output. Its USB ports include four USB 3.2 Gen 1 and two USB 2.0 on the rear, with additional headers for front panel expansion. Networking is powered by a Realtek 1Gb Ethernet port, ensuring fast and stable internet connectivity. Audio quality is another highlight, with Realtek’s 7.1 Surround Sound High Definition Audio CODEC delivering immersive sound. The inclusion of audio shielding, premium capacitors, and a dedicated audio PCB layer enhances sound clarity for an exceptional listening experience. Built with ASUS's 5X Protection III technology, the motherboard is fortified with features like DIGI+ VRM, LANGuard, and SafeSlot Core for durability and reliability. With Aura Sync and customizable RGB headers, it also allows you to personalize your PC's aesthetics. Backed by a 3-year warranty, the Asus PRIME A620M-K-CSM AM5 mATX Motherboard is a dependable and feature-rich choice for any PC build.

Features

AMD Socket AM5 Compatibility: Supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors, offering high performance for demanding tasks.
AMD A620 Chipset: Provides stable and reliable connectivity with support for PCIe 4.0, high-speed memory, and advanced storage options.
Memory Support: Equipped with 2 x DIMM slots, supporting up to 96GB of DDR5 memory at speeds up to 7200MHz (OC), allowing for efficient multitasking and overclocking.
M.2 and SATA Storage Options: Includes 1 x M.2 PCIe 4.0 x4 slot and 4 x SATA 6Gb/s ports for fast and flexible storage configurations.
Realtek 7.1 Surround Sound: Features Realtek’s high-definition audio CODEC with support for up to 24-Bit/192kHz audio playback and premium capacitors for enhanced sound quality.
Expansion Slots: Includes 1 x PCIe 4.0 x16 slot for graphics cards and 1 x PCIe 3.0 x1 slot for additional expansion cards, offering plenty of upgrade options.
Comprehensive I/O Ports: Offers multiple connectivity options, including 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI 2.1, 1 x VGA, and 1 x Realtek 1Gb Ethernet port.
Thermal Performance: Includes an aluminum heatsink design and supports multiple fan headers to ensure optimal cooling during heavy workloads.
Aura Sync RGB Support: Customizable RGB lighting with Aura Sync, including an Aura RGB header and addressable Gen 2 headers for personalized lighting effects.
ASUS 5X Protection III: Enhanced durability and reliability with features like DIGI+ VRM, SafeSlot Core, LANGuard, overvoltage protection, and stainless-steel back I/O.
Exclusive ASUS Software: Bundled with Armoury Crate, AI Suite 3, and other tools for easy customization, fan control, and system optimization.
Easy Installation: Includes ASUS Q-Design features like Q-DIMM, Q-Slot, and Q-LED Core for easier assembly and troubleshooting.
3-Year Warranty: Backed by a 3-year warranty, ensuring peace of mind and long-term reliability.
