Asus PRIME A520M-A II Motherboard

Asus PRIME A520M-A II AM4 micro ATX Motherboard

Back to Product Search Results

Asus PRIME A520M-A II AM4 micro ATX Motherboard

Status: In Stock
Brand: Asus
Model: PRIME A520M-A II

Based on 0 reviews. - Write a review

11,300৳

11,500৳

Ex Tax: 11,300৳

Add to PC Builder

Basic Information
Supported CPU	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	A520
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 24.4cm x 24.4cm
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
M.2 Socket	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Graphics
Graphics	Graphics specifications may vary between CPU types
Memory Specifications
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DIMM
Supported Memory	4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Maximum Memory	128GB

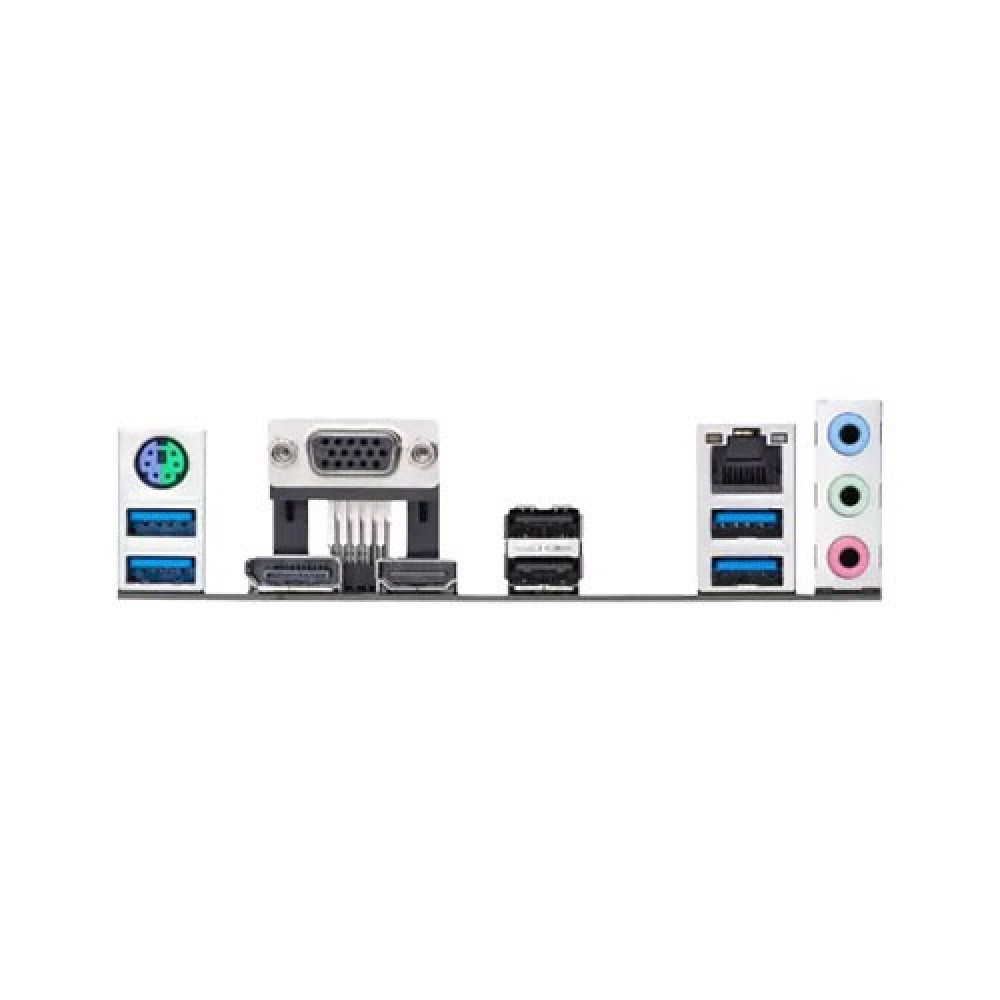

Connector & Ports
HDMI	1 x HDMITM port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet ASUS LANGuard
Supported Storage	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10
Audio	3 x Audio jacks Back Panel 1 x Front Panel Audio header (AAFP)
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header
D-Sub (s)	1 x D-Sub
Others Information
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Warranty Information
Warranty	03-Year Warranty

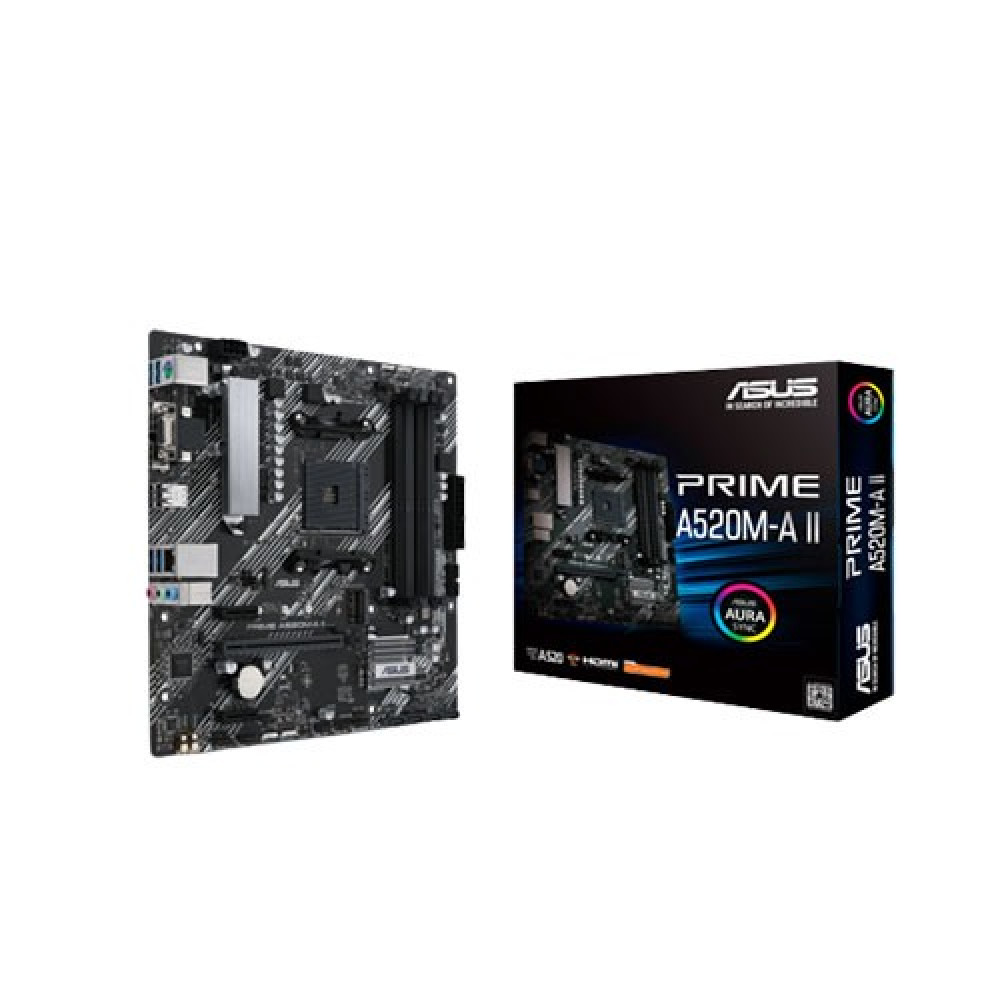

Asus PRIME A520M-A II AM4 micro ATX Motherboard

Asus PRIME A520M-A II AM4 Micro ATX Motherboard is a versatile and reliable foundation for your AMD Ryzen-based PC build. Designed to support AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors, it delivers exceptional performance and stability for both everyday computing and demanding tasks. Equipped with the A520 chipset, this motherboard offers robust features and compatibility, ensuring an optimized experience for gamers, content creators, and professionals alike With dual-channel DDR4 memory support and a maximum capacity of up to 128GB, the PRIME A520M-A II allows seamless multitasking and rapid data access. It features 2 DIMM slots and supports overclocked memory speeds up to 4866 MHz, catering to performance enthusiasts. Connectivity is a highlight, with multiple USB 3.2 Gen 1 and USB 2.0 ports, HDMI, DisplayPort, and D-Sub video outputs to accommodate various peripherals and display setups. The inclusion of an M.2 slot and four SATA 6Gb/s ports ensures high-speed storage options and RAID support for enhanced data protection and performance. Audio quality is elevated with Realtek ALC887/897 7.1 Surround Sound, featuring premium Japanese capacitors, audio shielding, and dedicated PCB layers for immersive sound experiences. Additionally, ASUS-exclusive features like 5X Protection III and Aura Sync RGB enhance durability and aesthetics. This micro ATX motherboard also includes practical tools like ASUS EZ Flash 3, CrashFree BIOS 3, and AI Suite 3 for effortless system management. The robust VRM heatsink and ASUS LANGuard provide reliable cooling and networking. Backed by a 3-year warranty, the ASUS PRIME A520M-A II is an excellent choice for a cost-effective, feature-rich motherboard, delivering performance, reliability, and ease of use for a wide range of computing needs.

Features

Processor Support: AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series compatibility.
Chipset: Powered by AMD A520 for reliable performance.
Memory: Dual-channel DDR4 with up to 128GB capacity and 4866 MHz (OC) support.
Expansion Slots: 1 x PCIe 3.0 x16 and 2 x PCIe 3.0 x1 slots.
Storage: 1 x M.2 slot and 4 x SATA 6Gb/s ports with RAID support.
Connectivity: HDMI, DisplayPort, D-Sub, and multiple USB 3.2 Gen 1 and 2.0 ports.
Audio: Realtek ALC887/897 7.1 Surround Sound with premium capacitors.
Cooling Features: VRM heatsink design and multiple fan headers.
Durability: ASUS 5X Protection III for enhanced system reliability.
RGB Sync: Supports AURA Sync with RGB and Addressable Gen 2 headers.
Bundled Software: Includes Armoury Crate, AI Suite 3, and Norton Antivirus trial.
Warranty: Backed by a 3-year manufacturing warranty.
