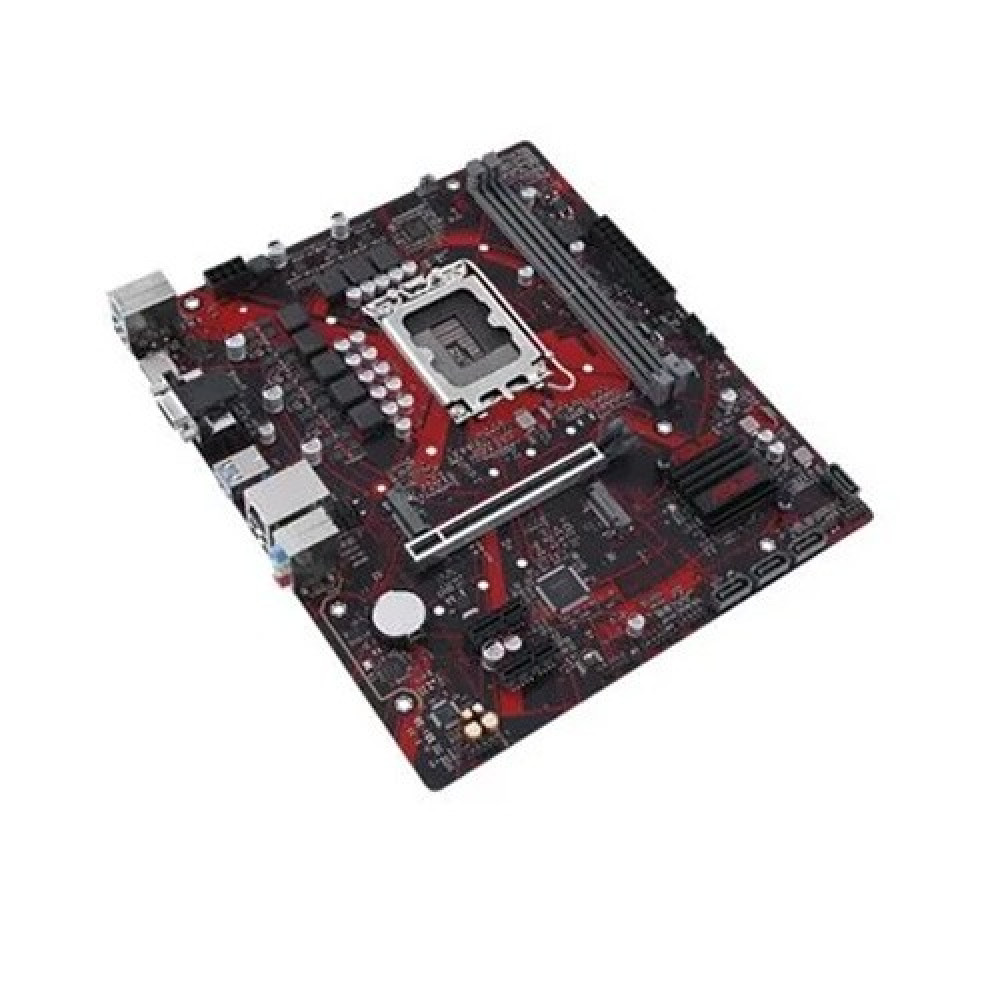

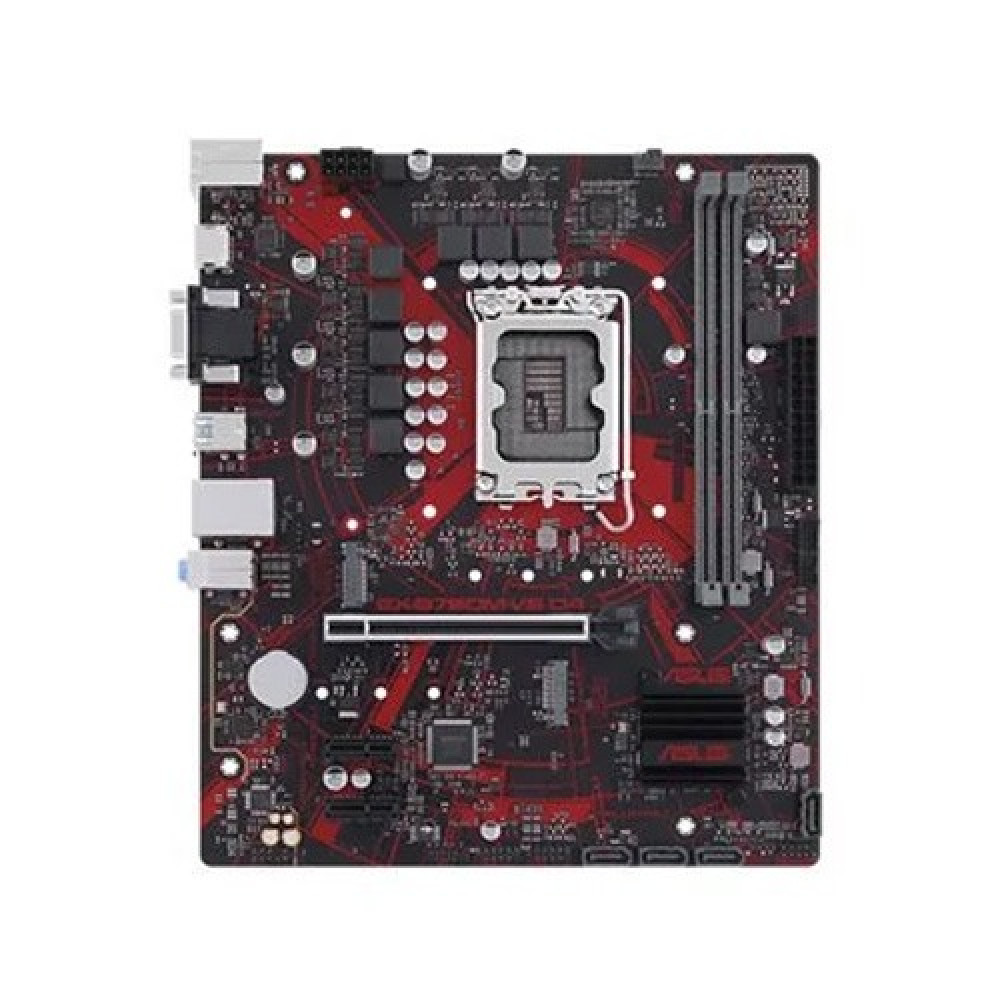

ASUS EX-B760M-V5 D4 LGA1700 Micro-ATX Motherboard

Status: In Stock
Brand: Asus
Model: EX-B760M-V5 D4

Based on 0 reviews. - Write a review

16,299৳

18,300৳

Ex Tax: 16,299৳

Add to PC Builder

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Graphics
Graphics	1 x VGA port 1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Memory Specifications
Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility with the device installed, please refer to
Supported Memory	2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
Connector & Ports
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * IntelFetF Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports	Fan and cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support an additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
Software
Operating System	Windows 11, Windows 10 64-bit
Warranty Information
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

ASUS EX-B760M-V5 D4 LGA1700 Micro-ATX Motherboard

ASUS EX-B760M-V5 D4 LGA1700 Micro-ATX Motherboard is a feature-packed, high-performance motherboard designed to support Intel’s 12th, 13th, and 14th Gen processors with LGA1700 sockets. Powered by the Intel B760 chipset, this motherboard ensures smooth computing performance for demanding applications and gaming. It is an ideal choice for users seeking stability, speed, and expandability for their systems. This motherboard supports up to 64GB of DDR4 memory, with speeds ranging from 2133 MHz to 5333 MHz (OC), ensuring efficient multitasking and enhanced performance. It supports Intel Extreme Memory Profile (XMP) for easy memory overclocking and dual-channel architecture for better data throughput. The PCIe 4.0 slots allow users to install high-speed expansion cards, with one PCIe 4.0 x16 slot for graphics cards and two PCIe 4.0 x1 slots for additional devices. Connectivity options include 1 x VGA port and 1 x HDMI port, supporting 4K resolution at 60Hz for smooth video output. It also offers comprehensive USB ports with 6 rear USB ports, including USB 3.2 Gen 1 and USB 2.0. You can expand your storage with 2 x M.2 slots and 4 x SATA 6Gb/s ports, supporting high-speed data transfers and RAID configurations. For premium audio quality, the motherboard features a Realtek 7.1 Surround Sound High Definition Audio CODEC, providing clear and immersive sound with support for 24-bit/192 kHz playback. Built-in protections like ASUS 5X PROTECTION III, DIGI+ VRM, LANGuard, and SafeSlot Core+ ensure the motherboard’s durability and longevity. The ASUS EX-B760M-V5 is a reliable and robust motherboard suitable for gamers, content creators, and power users, backed by a 3-year replacement warranty for peace of mind.

Features

Intel LGA1700 Socket Compatibility: Supports Intel Core 12th, 13th, and 14th Gen processors, offering powerful performance for gaming, content creation, and everyday computing.
Intel B760 Chipset: Provides robust performance and stability, optimized for Intel’s latest processors with enhanced memory support.
Memory Support: Supports up to 64GB of DDR4 memory with speeds from 2133 MHz to 5333 MHz (OC), ensuring fast and reliable multitasking and high-performance applications.
PCIe 4.0 Support: Equipped with 1 x PCIe 4.0 x16 slot for high-performance graphics cards and 2 x PCIe 4.0 x1 slots for additional expansion cards, ensuring fast data transfer and compatibility with modern devices.
4K Video Output: Includes 1 x HDMI 2.1 port supporting 4K at 60Hz, allowing for smooth video output for high-resolution displays.
Storage Options: Features 2 x M.2 slots (PCIe 4.0 x4) and 4 x SATA 6Gb/s ports, providing ample space for high-speed storage solutions, including SSDs and HDDs.
Realtek 7.1 Surround Sound: Offers 7.1 Surround Sound High Definition Audio CODEC, delivering immersive audio quality with up to 24-bit/192 kHz playback.
ASUS 5X PROTECTION III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, and SafeSlot Core+ for enhanced durability and protection against power surges and electrical faults.
Enhanced Cooling: Equipped with 1 x 4-pin CPU Fan header and 1 x 4-pin Chassis Fan header, ensuring optimal cooling and preventing overheating during intensive tasks.
USB Connectivity: Provides 6 rear USB ports and additional front USB headers, including USB 3.2 Gen 1 and USB 2.0, for fast data transfer and peripheral connections.
3-Year Warranty: Backed by a 3-year replacement warranty (terms and conditions apply), offering peace of mind with your purchase.
Easy DIY Features: Includes ASUS Q-Design with features like Q-DIMM, Q-Slot, and Q-LED Core for simple installation and troubleshooting.
