Asus ROG MAXIMUS Z790 HERO Motherboard

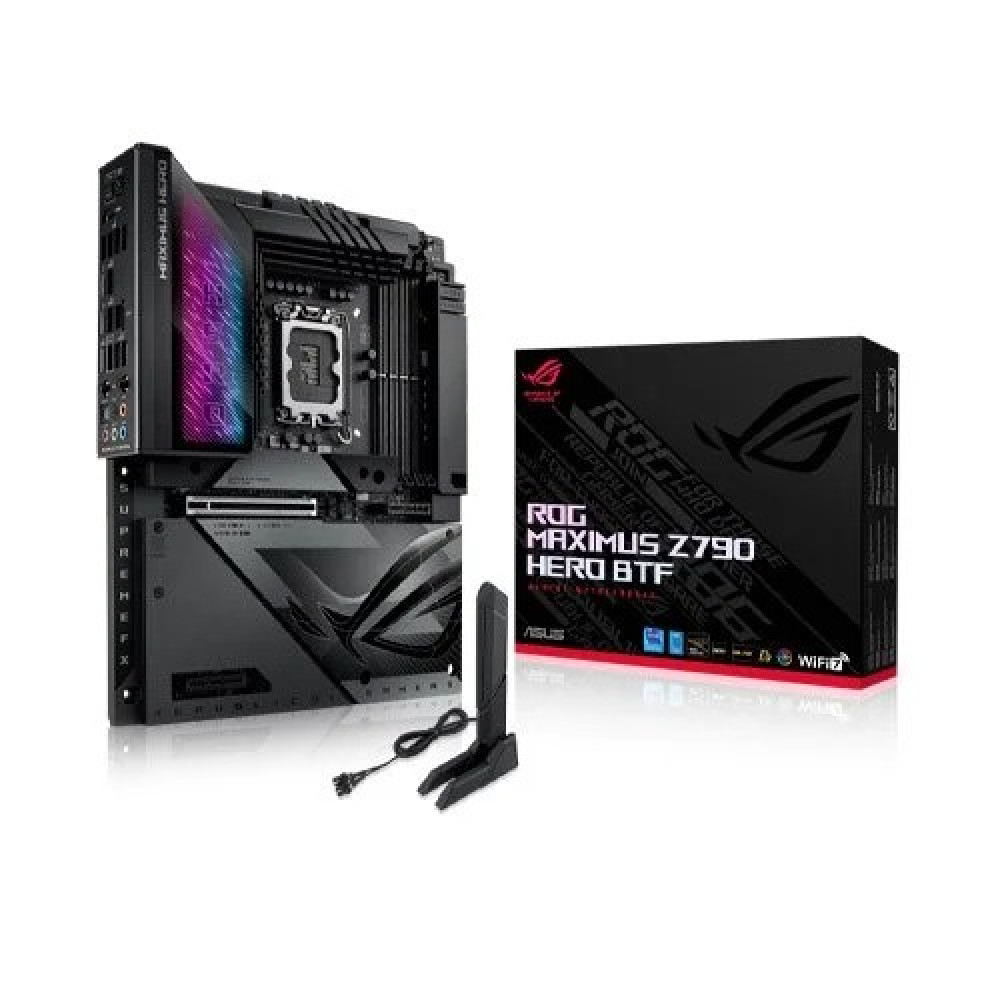

Asus ROG MAXIMUS Z790 HERO BTF Motherboard

Status: In Stock
Brand: Asus
Model: ROG MAXIMUS Z790

Based on 0 reviews. - Write a review

102,500৳

108,000৳

Ex Tax: 102,500৳

Add to PC Builder

Basic Information
Supported CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z790 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Graphics
Graphics	1 x HDMITM port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors' or graphic cards' resolution.
Memory Specifications
Supported Memory	4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+ (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC) /5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Connector & Ports
USB (s)	Rear USB (Total 12 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Wireless Communication module	Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only.
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x Q-Installation Switch
Software
Operating System	Windows® 11, Windows® 10 64-bit
Warranty Information
Warranty	3 year

Asus ROG MAXIMUS Z790 HERO BTF Motherboard

Asus ROG MAXIMUS Z790 HERO BTF Motherboard is an advanced platform tailored for power users and gamers seeking unmatched performance and reliability. Designed with the Intel® Z790 chipset, it supports a range of processors, including Intel® 14th, 13th, and 12th Gen Core™ processors, as well as Pentium® Gold and Celeron® CPUs, ensuring exceptional compatibility. Built on an ATX form factor, this motherboard provides robust features like support for DDR5 memory with speeds of up to 8000+(OC), offering maximum capacity of 192GB through four DIMM slots. Its Dual Channel Memory Architecture, along with Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II), ensures optimal performance for high-end applications. Graphics support includes one HDMI™ port and two Intel® Thunderbolt™ 4 ports with DisplayPort and Thunderbolt™ video outputs, delivering stunning visuals at 4K resolutions. The board also boasts comprehensive storage capabilities with five M.2 slots (PCIe 5.0/4.0) and four SATA 6Gb/s ports, enabling high-speed data transfers and efficient storage configurations. Connectivity is a highlight with cutting-edge Intel® Wi-Fi 7 technology, supporting multi-band frequencies and lightning-fast speeds, alongside Bluetooth® v5.4. Rear and front USB ports include Thunderbolt™ 4, USB Type-C®, and multiple high-speed USB Type-A options for versatile device connectivity. For audio enthusiasts, the ROG SupremeFX 7.1 Surround Sound codec ensures an immersive sound experience with premium components like ESS® ES9218 QUAD DAC and gold-plated audio jacks. Designed with convenience and durability in mind, it features ASUS Q-Design for easy installation, advanced thermal solutions, and AURA Sync for customizable RGB lighting. The Asus ROG MAXIMUS Z790 HERO BTF Motherboard is a powerhouse built to elevate your computing experience to the next level.

Features

Intel® 14th, 13th & 12th Gen Processor Support: Compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, offering powerful performance for gaming and demanding tasks.
DDR5 Memory Support: Supports up to 192GB of DDR5 memory, with speeds reaching 8000+(OC), ensuring superior performance and bandwidth for memory-intensive applications.
PCIe 5.0 and PCIe 4.0 M.2 Slots: Equipped with five M.2 slots (including PCIe 5.0 x4) for ultra-fast storage, along with four SATA 6Gb/s ports, ensuring high-speed data transfers and flexible storage configurations.
Intel® Wi-Fi 7 and Bluetooth® v5.4: Offers next-generation wireless connectivity with Intel® Wi-Fi 7 (up to 5.76Gbps) and Bluetooth® v5.4 for faster data transfer and enhanced connectivity.
Thunderbolt™ 4 Ports: Two Thunderbolt™ 4 USB Type-C® ports for high-speed data transfer, external display support, and other peripherals.
ROG SupremeFX 7.1 Surround Sound: Premium audio with ESS® ES9218 QUAD DAC, providing immersive sound with a 120dB signal-to-noise ratio (SNR) and high-quality 32-bit/384kHz playback.
AURA Sync RGB Lighting: Customizable RGB lighting with AURA Sync support, allowing for synchronized lighting effects across all compatible devices.
Extreme Engine Digi+: Features high-end components like 10K Black metallic capacitors and MicroFine alloy chokes for superior power delivery and enhanced stability.
Comprehensive Cooling Support: Includes multiple fan headers, VRM heatsinks, M.2 heatsinks, and backplate for effective thermal management during intense workloads.
User-Friendly ASUS Q-Design: Easy installation features like Q-Latch, Q-Release, Q-DIMM, and Q-Slot, along with pre-mounted I/O shields for seamless setup.
Advanced BIOS and Overclocking: Features a 256Mb Flash ROM with UEFI AMI BIOS, providing advanced settings for overclocking and system tuning.
