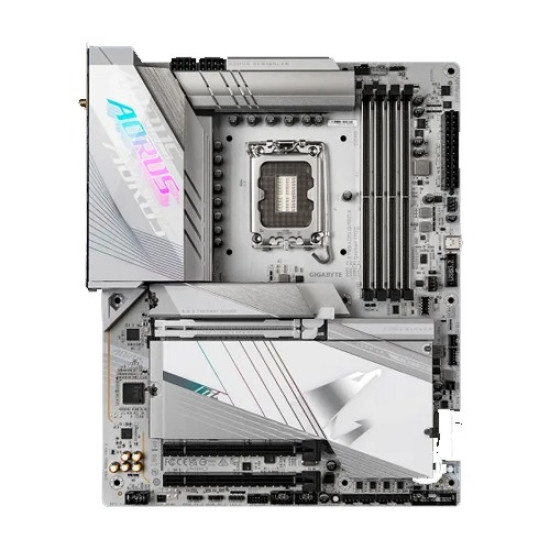

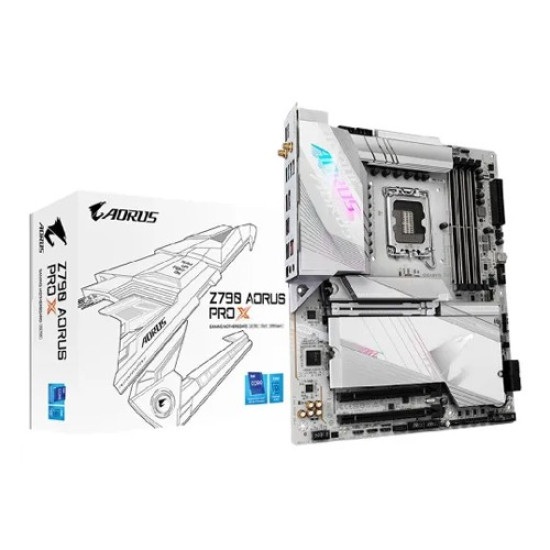

Name: GIGABYTE Z790 AORUS PRO X DDR5 ATX Motherboard
Brand: Gigabyte
Availability: OutOfStock

GIGABYTE Z790 AORUS PRO X DDR5 ATX Motherboard

Call For Price

GIGABYTE Z790 AORUS PRO X DDR5 ATX Motherboard

Key Feature

Graphics Output: 1 x DisplayPort, 1 x HDMI port
Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)
Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
Features: Intel Wi-Fi 7 BE200 (For PCB rev. 1.1)

View more details

Status: Call For Price
Brand: Gigabyte
Model: Z790 AORUS PRO X
MPN: smart

Based on 0 reviews. - Write a review

0৳

Qty

Add to Cart

Buy Now Call For Price

Add to Wish List Compare this Product

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z790 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDR. - 1 x USB Type-C port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Memory Specifications
Type	DDR5
Slots	4 x DIMM sockets
Supported Memory	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	192 GB (48 GB single DIMM capacity)
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort

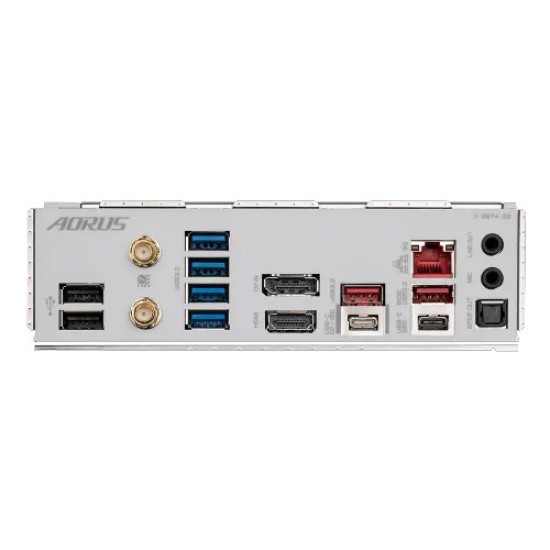

USB (s)	Chipset: - 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port onboard, with USB 2.0 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Audio	Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 2.0 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	3 years

GIGABYTE Z790 AORUS PRO X DDR5 ATX Motherboard

The GIGABYTE Z790 AORUS PRO X DDR5 ATX Motherboard is a cutting-edge motherboard engineered to deliver exceptional performance, advanced features, and robust reliability for users seeking a powerful foundation for their gaming or professional computing setups. Compatible with the LGA1700 socket, it supports the 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, providing a versatile platform for a wide range of CPU options. Powered by the Intel Z790 Express Chipset and equipped with a 256 Mbit flash BIOS featuring licensed AMI UEFI BIOS, the motherboard ensures seamless system boot and stable operation. Its ATX form factor (30.5cm x 24.4cm) provides ample space for expansion and compatibility with various chassis designs. The DDR5 memory support, with four DIMM sockets, enables high-speed memory configurations up to 8266MHz (OC), catering to demanding applications and providing an excellent foundation for multitasking. The motherboard supports a maximum memory capacity of 192GB (48GB per single DIMM), allowing for substantial memory configurations for resource-intensive tasks. Graphics capabilities are enhanced with integrated Intel HD Graphics support, featuring a USB Type-C port supporting USB 3.2 Gen 2 and DisplayPort video outputs. Additional HDMI and DisplayPort options ensure versatile display connectivity. Expansion slots include a PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16) for optimal graphics performance. The chipset provides further expansion with a PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4_1), and another supporting PCIe 3.0 at x4 (PCIEX4_2).

GIGABYTE Z790 AORUS PRO X Motherboard Features

Processor Support: The motherboard supports the LGA1700 socket, providing compatibility with the 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors. This flexibility allows users to choose from a wide range of CPUs based on their computing requirements.
Intel Z790 Express Chipset: Powered by the Intel Z790 Express Chipset, the motherboard delivers robust performance and advanced functionality to support the latest technologies.
BIOS and Form Factor: Equipped with a 256 Mbit flash and a licensed AMI UEFI BIOS, the motherboard ensures a stable and efficient system boot. The ATX Form Factor (30.5cm x 24.4cm) provides ample space for expansion and compatibility with various chassis designs.
Audio Excellence: Featuring the Realtek ALC1220-VB CODEC, the motherboard provides High Definition Audio with support for 2/4/5.1/7.1-channel configurations, delivering an immersive audio experience for gaming, multimedia, and content creation.
Expansion Slots: The motherboard offers versatile expansion slots, including a PCI Express x16 slot supporting PCIe 5.0 for optimal graphics performance. Additional PCIe x16 slots operate at various speeds, providing flexibility for multiple expansion cards.
DDR5 Memory Support: With four DIMM sockets, the motherboard supports DDR5 memory modules with speeds ranging up to 8266MHz (OC). It supports dual-channel memory architecture, ECC Un-buffered DIMM modules, and Extreme Memory Profile (XMP) for enhanced memory performance.
Graphics Capabilities: Integrated Graphics Processor-Intel HD Graphics support enhances visual experiences. The motherboard includes USB Type-C, HDMI, and DisplayPort outputs, supporting various display configurations and resolutions.
USB and Connectivity: Ample USB ports, including Type-C and Gen 2x2 support, provide high-speed data transfer options. The Realtek 5GbE LAN chip ensures fast and reliable wired networking, while the Intel Wi-Fi 7 BE200 module delivers Wi-Fi 6 and Bluetooth 5.3 wireless connectivity.
Storage Options: Multiple M.2 connectors and SATA 6Gb/s connectors support a variety of storage devices, with RAID support for both NVMe SSDs and SATA storage devices.
Internal I/O Ports: The motherboard includes a comprehensive set of internal I/O ports, addressing power connectors, fan headers, RGB LED strip headers, and various USB and audio headers for seamless connectivity and customization.
Special Features: GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, and Smart Backup features enhance user convenience and system management.
